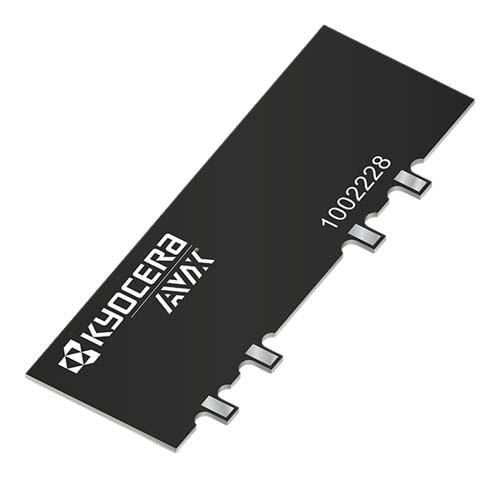

KYOCERA AVX 1002228 Passive Antenna Dual-feed ISM & WiFi /BT Vertical PCB

Gain: 1 dBi, 4 dBi

Width: 19 mm

Height: 1.6 mm

Length: 31 mm

Impedance: 50 Ohms

Technology: ISM, LoRa, Sigfox, Z-Wave, BLE, Bluetooth, WLAN, Wi-Fi, ZigBee

Polarization: Linear

Power Rating: 3 W

Frequency Range: 863 - 928 MHz, 868 / 915, 2400 - 2485 MHz

Number of Bands: 3 Band

Mechanical Style: PCB Trace

Maximum Frequency: 2.485 GHz

Minimum Frequency: 863 MHz

Protocol - Sub GHz: ISM, LoRa

Protocol - WiFi - 802.11: LoRa, SigFox, LPWA, RPMA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
