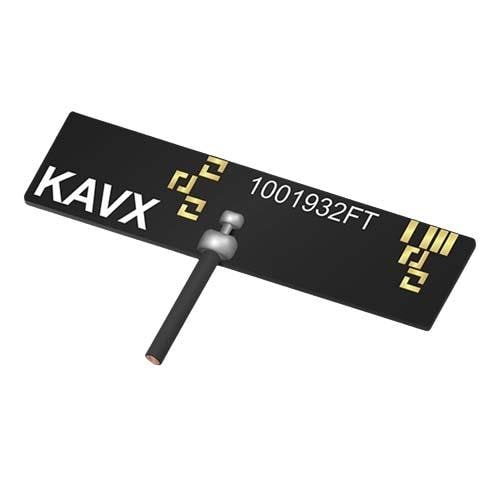

KYOCERA AVX 1001932FT-AA10L0025 Passive Antenna Tunable WiFi 6E/BT F PC 25mm Cable MHF Co

Gain: 2.5 dBi, 4.4 dBi

VSWR: 2:1

Style: T-Bar Flex

Width: 8.5 mm

Height: 1.6 mm

Length: 35.2 mm

Impedance: 50 Ohms

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Cable Length: 50 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2.4425 GHz, 7.25 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.825 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
