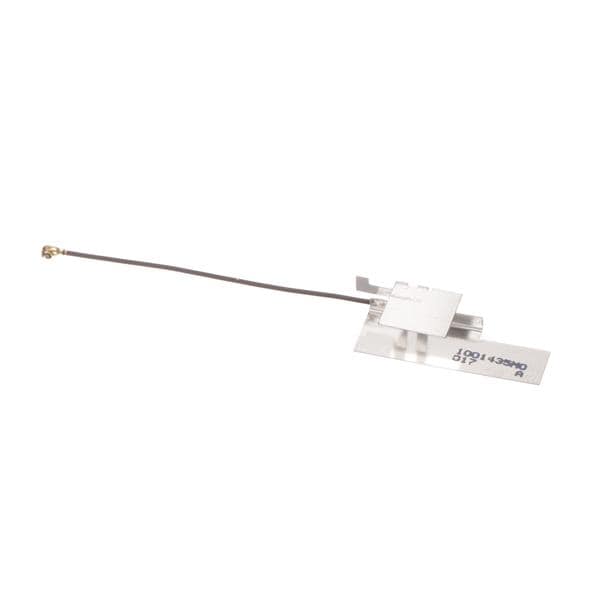

KYOCERA AVX 1001435M0-AA10L0070N Passive Antenna On/Off Grd Dual Bd W iFi Stamp Metal 70mm

Gain: 4.2 dBi, 4.7 dBi, 6.4 dBi, 6 dBi

VSWR: 2:1

Style: Metal

Width: 14.6 mm

Height: 9.5 mm

Length: 41.1 mm

Impedance: 50 Ohms

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Power Rating: 500 mW

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2.4425 GHz, 7.25 GHz

Mechanical Style: Stamped

Maximum Frequency: 5.825 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
