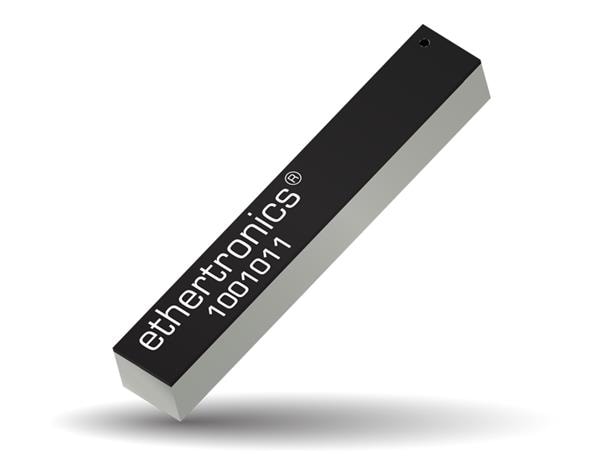

KYOCERA AVX 1001011 Passive Antenna 1.575-1.61GHZ GPS/GLONASS/BEID

Gain: 0.96, - 0.26 dBi, 0.87, - 0.22 dBi, 0.96, - 0.18 dBi, 1, - 0.35 dBi

VSWR: 1.5:1, 2.5:1

Style: Ceramic

Width: 3.2 mm

Height: 3.3 mm

Length: 22 mm

Impedance: 50 Ohms

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

For Use With: GPS/GLONASS/Beidou/Galileo PCB Antennas

Mounting Style: PCB Mount

Number of Bands: 4 Band

Center Frequency: 868 MHz, 1.561 GHz, 1.575 GHz, 1.6015 GHz, 1.61 GHz

Mechanical Style: Chip

Maximum Frequency: 1.61 GHz

Minimum Frequency: 868 MHz

Termination Style: SMD/SMT

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
