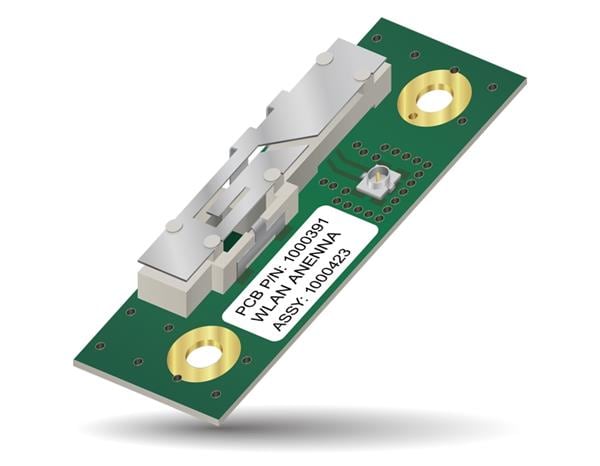

KYOCERA AVX 1000423 Passive Antenna On Ground Stamped Me tal Dua Band WiFi/BT

Gain: 0.6 dBi, 4.5 dBi

VSWR: 2.5:1

Style: Metal

Width: 15 mm

Height: 6.4 mm

Length: 40 mm

Impedance: 50 Ohms

Technology: WLAN

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Unit Weight: 11.404 g

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 4 Band

Center Frequency: 2.4425 GHz, 5.487 GHz

Mechanical Style: Stamped

Maximum Frequency: 5.9 GHz

Minimum Frequency: 2.39 GHz

Termination Style: SMD/SMT

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: 802.11 a/b/g/n/c, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
