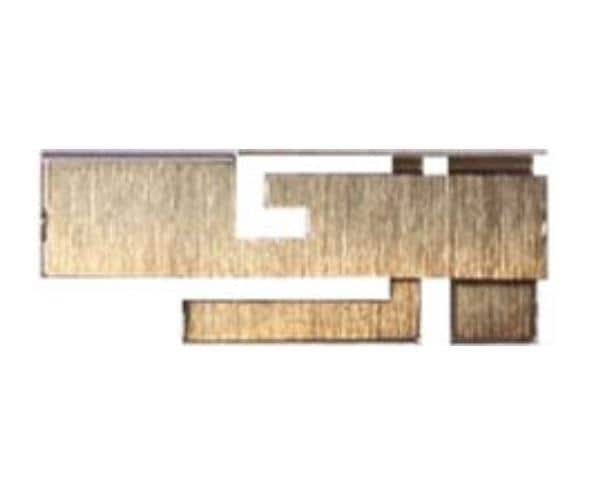

KYOCERA AVX 1000146 Passive Antenna Stamped Metal WiFi 6 E/7 & BT or CBRS/5G

Gain: 1.5 dBi, 2.6 dBi

VSWR: 1.5:1, 1.6:1

Style: Metal

Width: 6.9 mm

Height: 4.3 mm

Length: 17.85 mm

Impedance: 50 Ohms

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Polarization: Linear

Power Rating: 500 mW

Mounting Style: PCB Mount

Electrical Type: Embedded Dipole

Number of Bands: 3 Band

Center Frequency: 2.4 GHz, 4.9 GHz, 5.2 GHz, 5.8 GHz

Mechanical Style: Stamped

Maximum Frequency: 5.825 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
