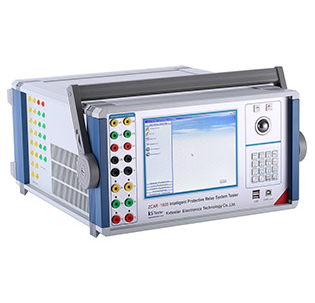

Microcomputer Protective Relay Tester KVTESTER ZCAR-1600 (6 phase voltage 6 phase current)

Product Parameters:

AC current source

Amplitude range: 6 × (0-30A) Accuracy: 0.2%

Six-phase current parallel output max: 180A

Phase current long-term allowable working values: 10A

Power: 260VA / phase

DC current source

phase power: 180VA

phase accuracy: 0.2%

AC voltage source

Amplitude range: 6 × (0-120V) Accuracy: 0.2%

Line voltage range: 0--240V

Phase voltage / line voltage Output power: 70VA / 140VA

DC voltage source

Phase voltage output amplitude: 0~± 160V Accuracy: 0.2%

Line voltage output amplitude: 0~± 320V

Phase voltage / line voltage Output power: 80VA / 160VA

Switch Terminals

switch input terminals: 8 pairs

Air access point: 1--20mA, 110V internal device active

Potential flip: 0-6VDC low 10-250VDC high

Switch output terminals: four pairs of empty contacts

breaking capacity: AC:250V / 0.5A; DC:60V / 0.5A,

Max. measurement time : 9999s
