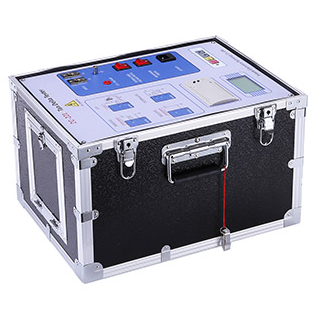

Tan Delta Tester KVTESTER ZC-221

Product Parameters

High voltage output: 0.5~10KV

Each files to increase 500V, a total of twenty files, capacity: 1500VA

Accuracy

tg δ: ±(reading*1.0%+0.04%)

Cx: ± (reading*1.0%+1PF)

Resolving power

tg δ: 0.01% Cx:1pF

Measuring range

0.1%< tg δ< 100%

3PF<Cx<60000PF

10KV,Cx≤30000PF

5KV, Cx≤60000PF

Power supply

AC 220V±10% 50±1Hz

Measurement method

Power frequency: 50Hz

Pilot frequency: 45Hz/55Hz Automatic frequency conversion

Harmonic adaptation : ≤ 3%

Service condition

-15℃-50℃ relative humidity<80%

Outline dimension

460(L)*345(W)*350(H)

Weight
