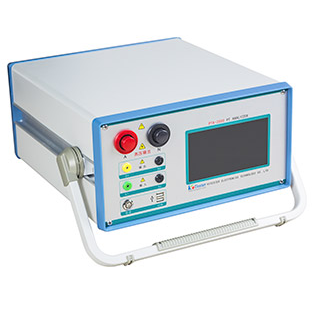

PT analyzer KVTESTER PTA-2000

Input voltage : 185Vac~250Vac

Input voltage(allowable) : 85Vac~264Vac

Frequency : 50/60Hz

Frequency(allowable) : 45Hz~65Hz

Input power : 800VA

Connection : Standard AC socket 60320

PT ratio accuracy :

Ratio 1~350,0.03%( typical value)

Ratio 350~1100,0.05%( typical value)

Ratio >1100,0.07%( typical value)

Phase measurement Resolution : 0.01min

Phase measurement Accuracy : 2 min

Secondary winding resistance test Range : 0Ω~500Ω

Secondary winding resistance test Resolution : 1mΩ

Secondary winding resistance test Accuracy : 0.5%±2mΩ(Guaranteed value)

AC load measurement Range : 0VA~1000VA

AC load measurement Resolution : 0.01VA

AC load measurement Accuracy : 0.5%±0.05VA

Low-voltage output :

0~120V 5Arms, current:12A(peak) power:600VA

High-voltage output : 0~3000V

Operating temperature : -10℃~+50℃

Storage temperature : -25℃~+70℃

Relative humidity : 5%~95%,No dew

Size : 365×290×155mm3

Weight : ≈18kg(not include attachments)
