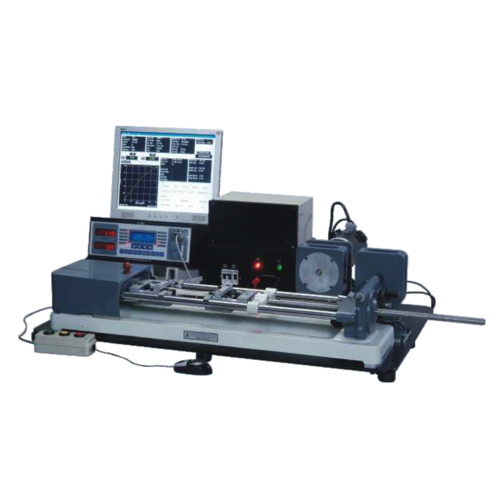

1, Mechanical frame
Capacity: 20KN max
Dimensions: H300 x W700 x L1050mm (approx)
Weight: 60kg (Appprox)
2, Motor drive unit (Essential)
Specifications: Motor: permanent magnet DC servo, 3.6 V, 4.8A, 1600 rpm, 0.16KW
Speed variation: Servo drive, speed variation through timer belt & pulley arrangement computer control system. (0.2-500mm/min)
3, Load measurement: 20KN max with interchangeable load cells
Load cells available: 0.2KN, 2KN, 5KN, 10KN, 20KN
Measuring unit: Newton, kg
4, Displacement: optical encoder as sensor
Measurement facility: 0-500mm
5,Least count & load accuracy: L.C +0.05% of load cell, Accuracy 1%
