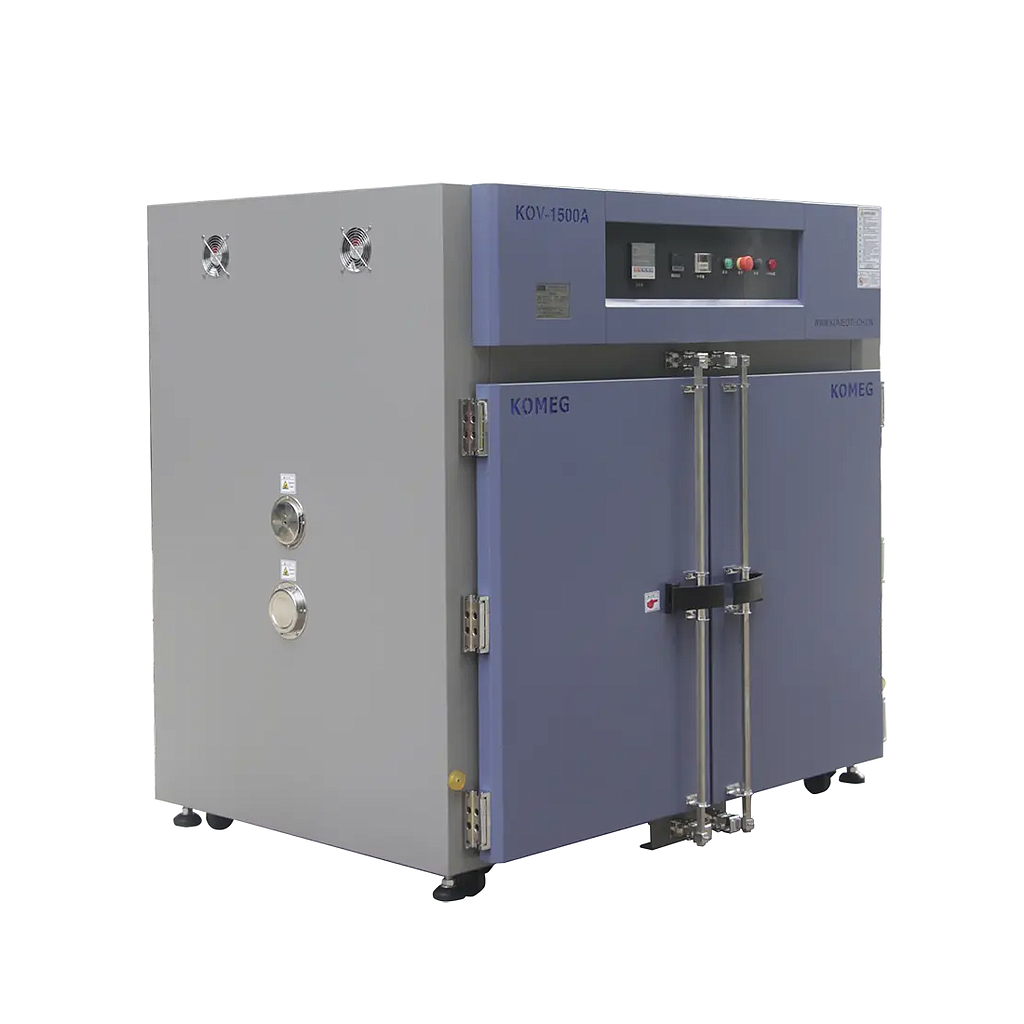

KOMEG KOV-1500 Drying Oven (+50℃ ～ +250℃)

Air supply mode: Forced air circulation

Temperature Range: +50℃ ～ +250℃

Temp fluctuation: ±0.5℃

Temp Uniformity:

±2.0℃ (RT+50℃ ～ +100℃)

±3.0℃ (+101℃ ～ +200℃)

±4.0℃ (+201℃ ～ +300℃)

Heat up time: RT+10℃ ～ +300℃ 60min (no-load)

Control mode: PID+SSR output

Interior dimension: W 1500 × H 1000 × D 1000 mm

Door gasket: Double door with rubber stopper and plastic cover.

Materials: interior material :SUS304# stainless steel；External material: high-quality carbon steel with static color spray

Insulation materials: Rigid polyurethane foam insulation layer + glass fiber.

Heater: Fins radiator pipe shaped stainless steel electric heater

Temperature controller: Korea imported thermostat ST-570

High precision (0.1%), high performance

Support multi-input (T / C, RTD, DCV)

Multi-output and simultaneous output (Max 4 points)

Parameter operation is simple, the text can be set

Supports suppression of Overshoot function

Alarm output 1 point

Operation display of auxiliary output status

Input adjustment function for each zone (Max 4 Zone)

Control the heating and cooling functions

PID automatic adjustment function (AT Gain)

Supports multiple communication protocols (Modbus, etc.)

To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature measurement: K thermoelectric pairs

Protective device: Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.

Frame material: Stainless steel plate 2 pcs (Height adjustable); Bearing 30 kg/layer

Accessory: Power cord 3 meters

Power supply: AC 3ψ4W 380V 50Hz (R, S, T, N + G) (voltage fluctuation ≦ ± 10%)
