Temp. range: -20℃～150℃
Interior size (WxHxDmm): 1000x1000x800
Exterior size (WxHxDmm): 1280x2160x1750
Power(KW): 12.8
Weight(KG):500
Humidity uniformity: ±5.0％R.H
Heat up time: -20℃～+100℃,within 35 min
Pull down time: +20℃～-20℃, within 45 min
Standard accessories: Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
Safety device (standard): No fuse breaker, over pressure、 over heat and over current protection for compressor,
Over temp. protect, over load protect of blower, dry heat protection
Control System: Balanced Temperature & Humidity Control System
Refrigeration system
Air Cooled （Water Cooled Type is option）
Hermetic compressor,Single stage refrigeration system,
CFC-Free refrigerant(HFC-507/HFC-23)
Controller
Panel:7-inch LCD Touch panel, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles
Humidity Range: 20～98％R.H
Temp. constancy: ±0.5℃
Humidity constancy: ±2.5％R.H
Temp. uniformity: ±2.0℃
Interior material: Stainless Steel Plate（SUS 304）
Exterior material: Baked Painting Steel Or Stainless steel(SUS304)
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp: +5℃～+35℃
Wiring method: AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires

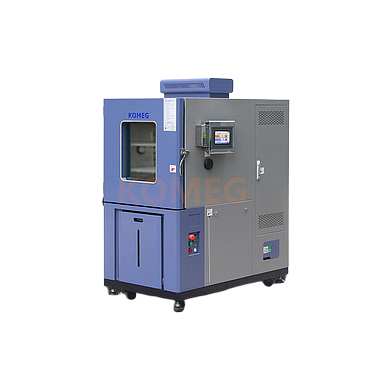

Temperature Humidity Test chamber are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temp. humidity test chamber can give you a perfect solution. It ables to simulate a wide range of temperature and humidity environments, that temperatures ranging from -70°C to +150°C,and humidity range is from 10% to 98% RH. KOMEG can also offer you best solutions based on your own requirements.
KMH Series is our most proficiency and competitive products:
The following detailed information is about KMH-150R.
1. KMH-150R Technical Parameter
2. Product details
