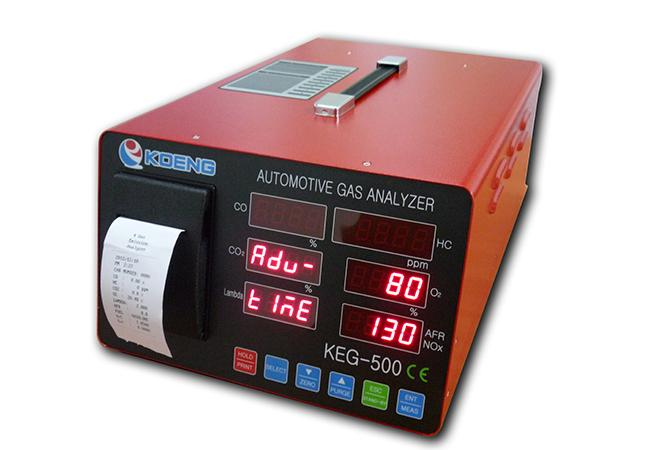

Koeng KEG-500 (4 gas) Automotive Gas Analyzer (4 gas: CO, HC, CO2, O2, AFR, Lamda)

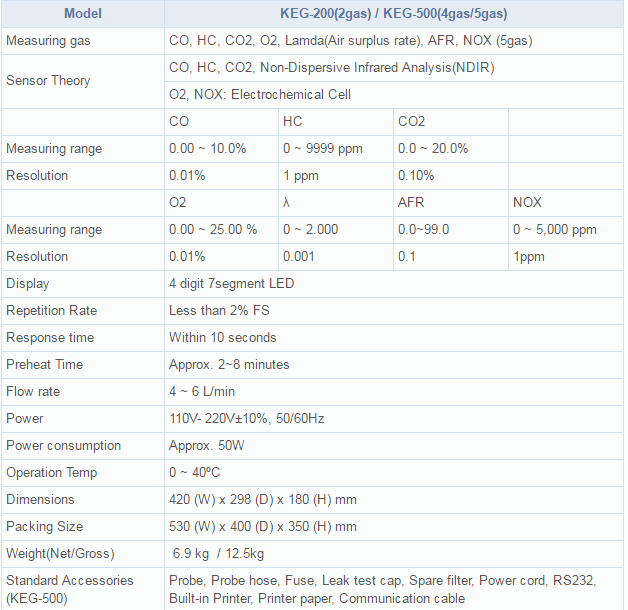

Measuring range 0.00 ~ 10.0% 0 ~ 9999 ppm 0.0 ~ 20.0% 　
Resolution 0.01% 1 ppm 0.10% 　
O2 λ AFR NOX
Measuring range 0.00 ~ 25.00 % 0 ~ 2.000 0.0~99.0 0 ~ 5,000 ppm
Resolution 0.01% 0.001 0.1 1ppm
Display 4 digit 7segment LED
Repetition Rate Less than 2% FS
Response time Within 10 seconds
Preheat Time Approx. 2~8 minutes
Flow rate 4 ~ 6 L/min
Power 110V- 220V±10%, 50/60Hz
Power consumption Approx. 50W
Operation Temp 0 ~ 40ºC
Dimensions 420 (W) x 298 (D) x 180 (H) mm
Packing Size 530 (W) x 400 (D) x 350 (H) mm
Weight(Net/Gross) 6.9 kg / 12.5kg
Standard Accessories (KEG-500) Probe, Probe hose, Fuse, Leak test cap, Spare filter, Power cord, RS232, Built-in Printer, Printer paper, Communication cable
Options RPM & OIL temp. meter
Built-in printer for KEG-200
