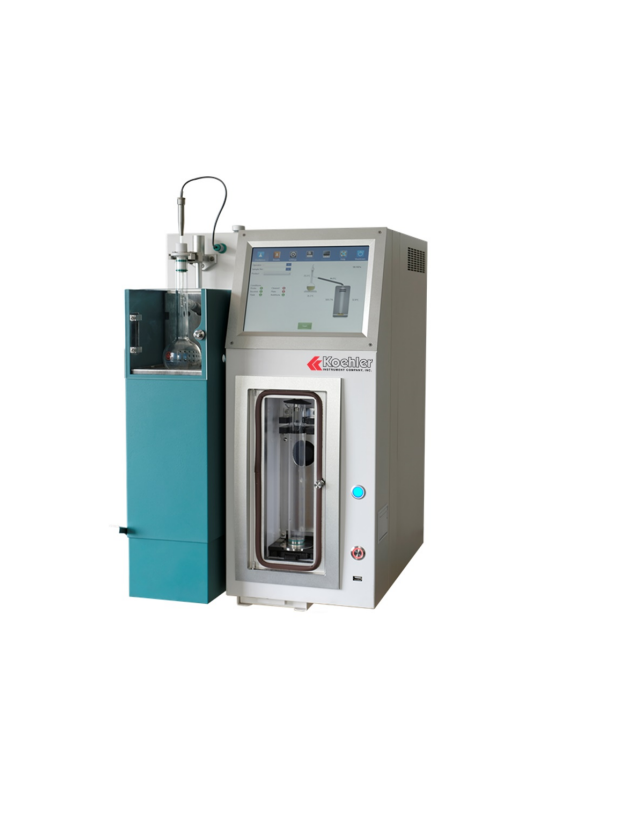

Koehler MiscSalePD Automatic Atmospheric Distillation Tester

Steam Temperature:

Steam Temperature Range: 0 - 450°C

Steam Temperature Accuracy: ±0.1°C

Sample Volume:

Sample Volume Range: 0 - 103%

Sample Volume Resolution: 0.01 mL

Sample Volume Accuracy: ±0.1 mL

Condenser Temperature:

Condenser Temperature Range: -5 - 65°C

Condenser Temperature Accuracy: ±0.1°C

Distillation Rate:

Distillation Rate Range: 2 - 10 mL/min

Distillation Rate Resolution: 0.1 mL/min

Recovery Chamber Temperature:

Recovery Chamber Range: 0 - 60°C

Recovery Chamber Accuracy: ±0.1°C

Ambient Air Pressure:

Ambient Air Pressure Range: 1 - 130 kPa

Ambient Air Pressure Resolutions: 0.01 kPa

Ambient Air Pressure Accuracy: ±0.1 kPa

Electrical Requirements: 110-230V 50/60Hz, <1200W

Operating Environment

Operating Ambient Temperature: 5 - 35 °C

Storage Temperature: -10 - 55 °C Relative

Humidity: <75%

Included Equipment:

Atmospheric Distillation Zeolite (Pack)

Condenser Wiper

Flask

Temperature Sensor

Dry Point Detection

Oil Receivers
