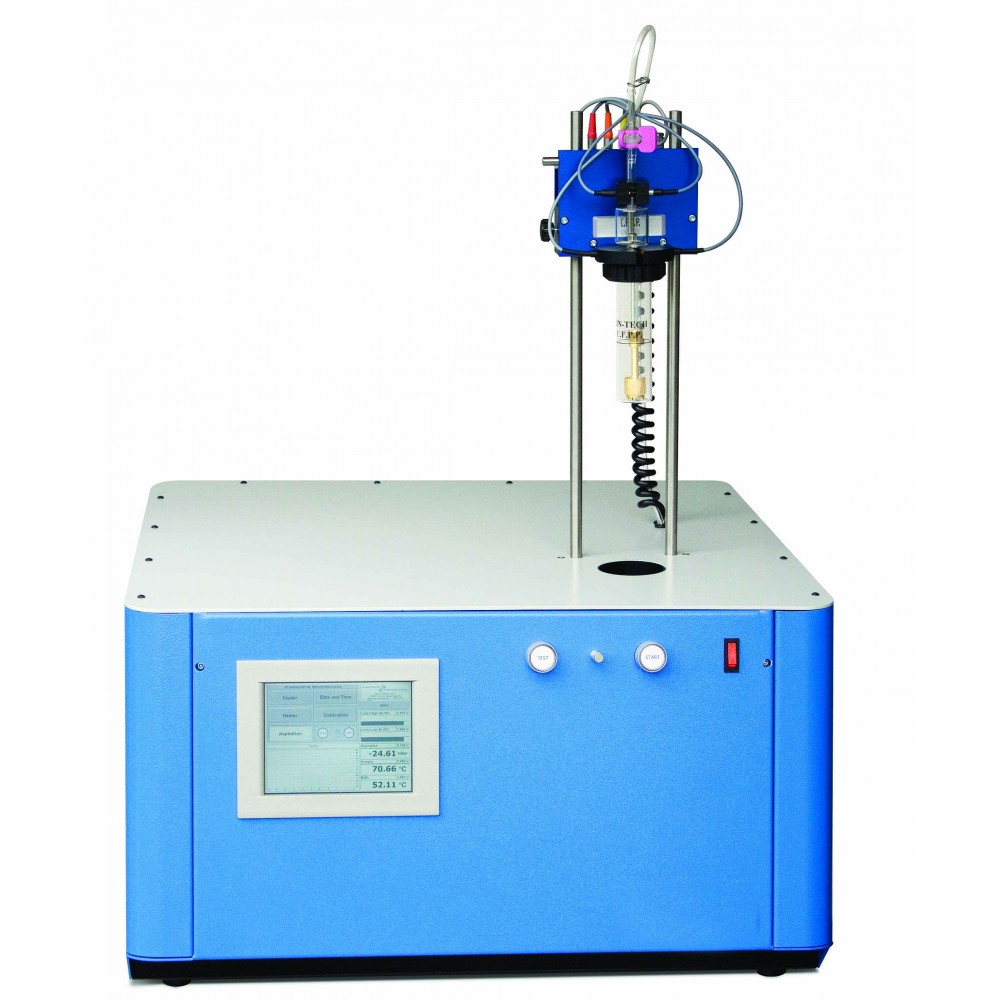

Koehler KLA-4-TS/2 Automatic Cold Filter Plugging Point Analyzer with Touch Screen (+60 ~ -80°C, two-stage)

Determines the highest temperature at which a given volume of diesel, biodiesel or heating fuel fails to pass through a standardized wire mesh filtration device in a specified time when cooled under specified conditions.

Specifications:

Conforms to the specifications of: ASTM D6371; IP 309, 419; EN 116

Temperature Range: One-Stage: +60 to -45°C Two-Stage: +60 to -80°C

Resolution: 0.06°C Accuracy: ±0.1°C

Repeatability/Reproducibility: as per standard test methods or better

Data storage: 60,000 analyses

Electrical requirements: 115V±15%/60Hz 220V±15%/50 to 60Hz

Dimensions:

- WxDxH,in.(cm): 26 x 23 3⁄4 x 31 1⁄2 (66x60x80)

- Net weight: 150 lbs (68kg)

Shipping Information

Shipping weight: 267 lbs (121.1kg)

Dimensions: 32x30x43 in. (81.3x76.2x109.2cm)

Included accessories

Calibrated Aspiration Pipette complete with Filter Kit for CFPP

Cord Cable without plug

Calibrated Test Jar

User Manual

Connection Tube for Vacuum System Operating Software

Spacer

Additional accessories

KLA-PT100-CAL Certified Calibration Decade Box - PT100 Simulator

KLA-DB-KIT Set of Connectors and Cables

Datasheet
