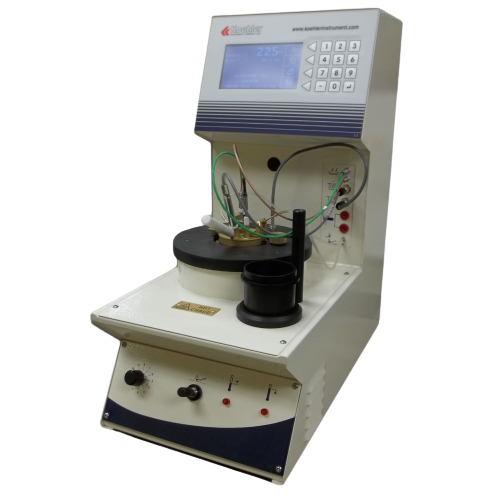

Koehler K87790 Automatic Tag Closed Cup Flash Point Tester (230V 50/60Hz)

For the determination of the flash point of liquids with a viscosity below 5.5 mm2/s (cSt) at 40°C (104°F), or below 9.5 mm2/s (cSt) at 25°C (77°F), and a flash point below 93°C (200°F).

Specifications

- Conforms to the specifications of: ASTM D56; IP 304

Electrical requirements: 230V 50/60Hz

Dimensions

- lxhxd,in.(cm): 10.63x21.65x21.65 (27x55x55)

- Net weight: 60 lbs (27.2 kg)

Included accessories

- Test Cup

- Cover Assembly

- Glass PT100 Temperature Probe

- Detection Cable

- Insulated Tubing for Connection to External Chiller

- Data Acquisition Software

- RS232C Output

Shipping information

- Shipping weight: 81 lbs (36.7kg)

- Dimensions: 25x16x31 in. (63.5x40.6x78.7cm)
