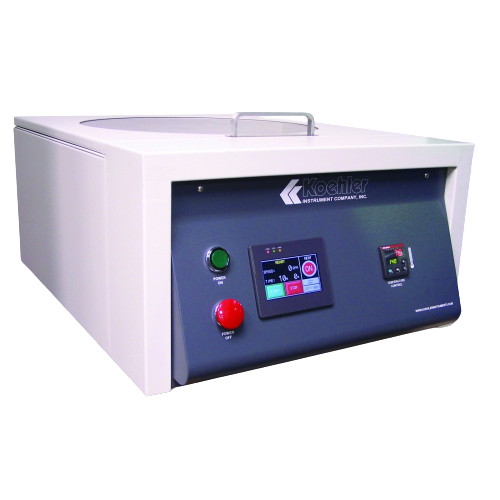

Koehler K60092-FT Automatic Heated Oil Test Centrifuge (Finger tube rotor assembly)

Centrifugation provides a convenient means of determining sediment and water content in crude oil, fuel oils, middle distillate fuels, and biodiesel.

Specifications

- Conforms to the specifications of: ASTM D91, D96, D893, D1796, D2273, D2709, D2711, D4007, D5546; IP 75, 145, 359; API 2542, 2548; ISO 3734; DIN 51793; NF M 07-020

- Capacity: Four (4) oil test centrifuge tubes: long (100mL), short (100mL), pear (100mL), or finger tubes (12.5mL)

- Maximum speed: 2200 RPM

- Maximum RCF: 1327 (long); 1170 (short); 865 (pear-shaped)

- Timer: 0 to 999 min

- Set speed: 200 - 2200 RPM

- Speed readout: 0 - 2200 RPM

- Temperature control: ambient to 93°C (200°F)

- Temperature readout: Digital

- Brake: Automatic Dynamic

Electrical requirements: 230V 50/60 Hz, 3.5A

Dimensions

- lxwxh,in.(cm): 31x25.8x14.3 (78.74x65.53x36.32)

- Net weight: 98 lbs (44.5kg)

Shipping information

- Shipping weight: 125 lbs (56.7kg)

- Dimensions: 36x29x20 in. (91.4x73.7x50.8cm)
