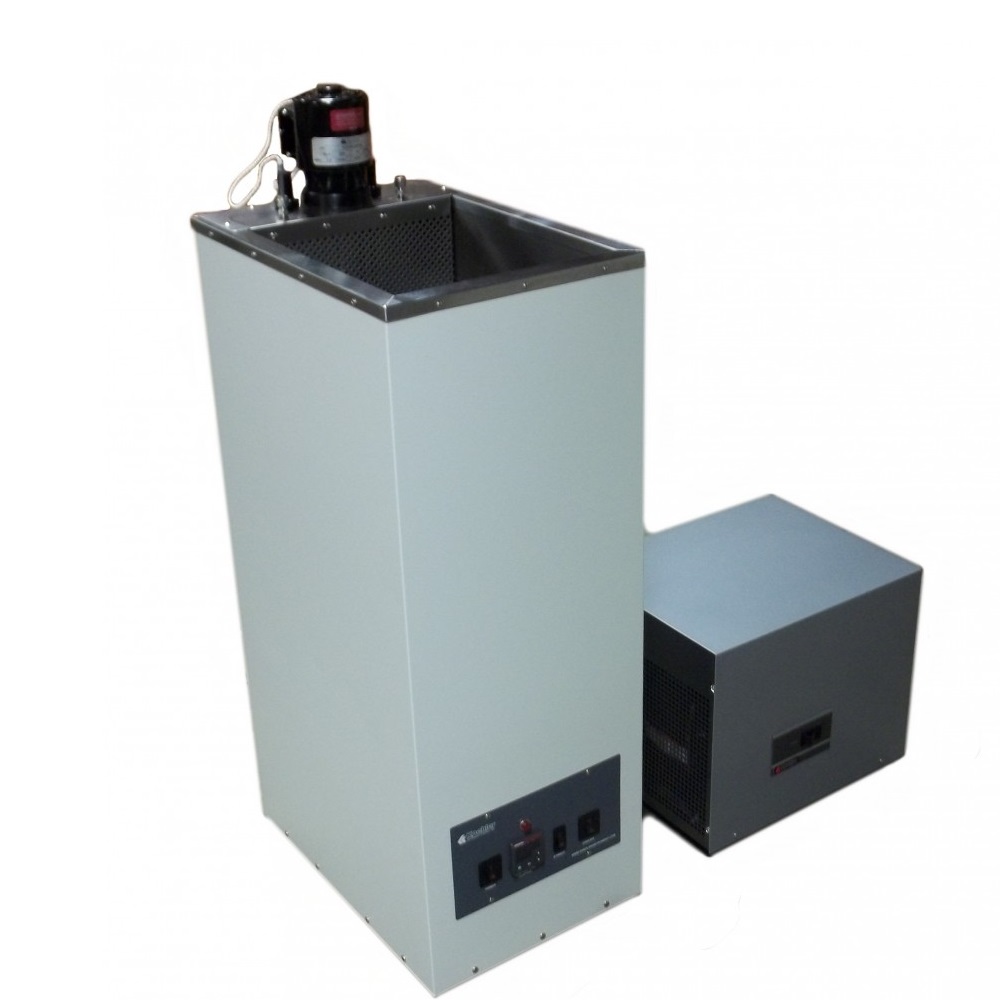

Koehler K25995 Constant Temperature Water Bath (2 cylinders)

Density and relative density measurements of light hydrocarbons, including LPG, are used for transportation, storage and regulatory purposes.

Specifications

- Conforms to the specifications of: ASTM D1657; IP 235; ISO 3993

- Controller sensitivity: ±0.5°F (±0.2°C)

- Capacity: two (2) K26150 cylinders

Electrical requirements: 220-240V 50Hz, Single Phase, 6.4A

Dimensions

- lxwxh,in.(cm): Bath interior: 12x18x22(30x46x56)

Overall: 18x20x49 (46x51x124)

- dia.xh,in.(cm): Pressure hydrometer cylinder: 8 1⁄4x23 3⁄4 (21x60)

- Net weight: Overall: 158 lbs (71.7kg)

Pressure hydrometer cylinder: 5 lbs (2.3kg)

Shipping information:

- Shipping weight: 194 lbs (88.0 kg)

- Dimensions: 30x24x53 in. (76.2x61.0x134.6cm)

Additional accessories

- K26150 Pressure Hydrometer Cylinder

- 251-000-001 ASTM 101H Thermohydrometer

- 251-000-004 ASTM 310H Thermohydrometer

- 250-000-12F ASTM 12F Thermometer. Range –5 to +215°F

- 250-000-12C ASTM 12C Thermometer. Range –20 to +102°C
