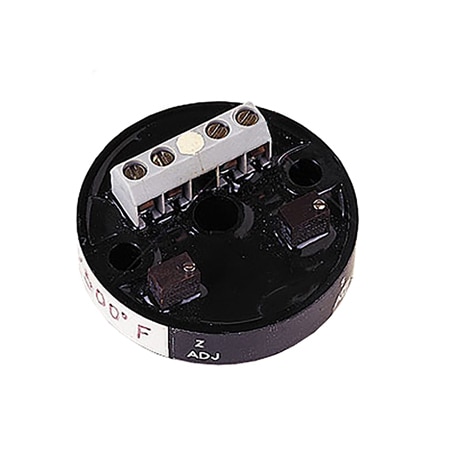

OMEGA NB1TX93-K5-6 Miniature Head Mount Temperature Transmitters (Thermocouple, K, -18 to 399 °C)

Height: 0 mm

Weight: 0 g

Accuracy: ± 0.1 %

Bandwidth: 3 dB @ 3Hz

Linearity: ±0.1%

Hysteresis: ±0.1%

Input Type: Thermocouple

Calibration: Trimpot

Sensor Type: Probe

Probe Length: 152 mm

Accuracy Note: ±0.1% FS (includes effects of linearity, hysteresis and repeatability)

Junction Type: Ungrounded

Repeatability: ±0.1%

Probe Diameter: 6 mm

Setup Controls: Trimpot

Supply Voltage: 8 to 35 Vdc

Sheath Material: 304 Stainless Steel

Electrical Output: 4 to 20 mA

Supply Power Note: 8 to 35 Vdc; 24 Vdc recommended

Supply Power Type: DC

Thermocouple Type: K

Input Control Signal: N/A

Loop Resistance, Max: (Vs-8V)/0.02A

Temperature Input Range: -18 to 399 °C

Storage Temperature, Max: 125 °C

Storage Temperature, Min: -65 °C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -25 °C

Zero Setting Adjustable Range: ±25%
