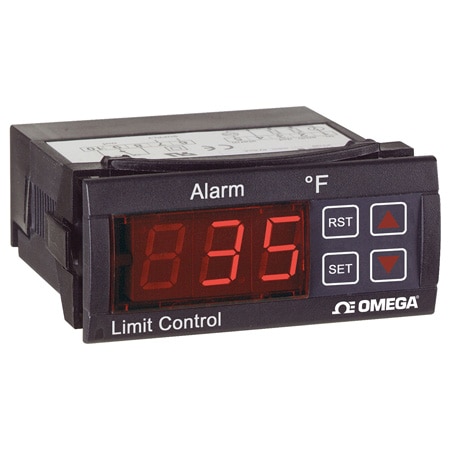

OMEGA CN702 Temperature Limit Controller with Audible Buzzer and 15 Amp Relay (Thermocouple Type J, Thermocouple Type K, Thermocouple Type S, ± 1 %, 3 Digit LED)

Weight: 65 g

Accuracy: ± 1 %

Input Type: Thermocouple

Resolution: 1°

Form factor: Panel Mount

Control Type: ON/OFF; Manual/Automatic Reset

Display Size: 12.7 mm (0.50 in)

Display Type: 3 Digit LED

Memory Backup: Non-Volatile

Output Detail: 16 A SPDT relay @ 250 Vac resistive

Control Output: 16 A SPDT Relay

Supply Voltage: 110 Vac

supply-voltage: 110 Vac

Measuring Range: Type J: 0 to 700°C Type K/S: 0 to 999°C

Number of Inputs: 1

Cutout Dimensions: 71 x 29 mm

Display Type Note: 3-digit, red, 12.7 mm (1⁄2") digits, plus sign Display Update Rate: Selectable down to 1 second

Enclosure Ratings: IP64

Horsepower Rating: 1 hp

Number of Outputs: 1

Power Consumption: 4 VA

Supply Power Type: AC

Additional Features 1: °F

Temperature Sensor Type: Thermocouple Type J, Thermocouple Type K, Thermocouple Type S

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 65 °C

Operating Temperature, Min: 0 °C

Front Panel Display Readings: °C
