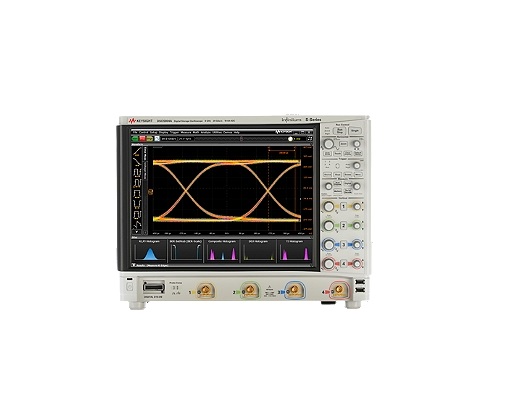

KEYSIGHT MSOS404A Infiniium 오실로스코프 (4 GHz; 4+16 channels; 10 GSa/s)
생산업체: KEYSIGHT Model: MSOS404A 보증: 12 Month - 연락처
Analog channels: 4
Digital channels: 16
Bandwidth: 4 GHz
10/90% Rise Time: 107.5 ps
Full BW ENOB: 7.2
Full BW Noise Floor: 153 uV
Standard Rate: 20 GSa/s on two channels, 10 GSa/s on four channels
Max Memory Depth: 800 Mpts
RF Noise Density: -160 dBm/Hz
SFDR: 72 dB
Display size: 15" XGA Capacitive Touchscreen, VGA and Display Port for External Monitors
Dimensions (feet retracted): 43 mm W x 33 mm H x 23 mm D (16.8 x 12.9 x9 in.)
Weight frame: 12 kg (26.4 lbs.), Shipping: 20 kg (44.1 lbs.)
