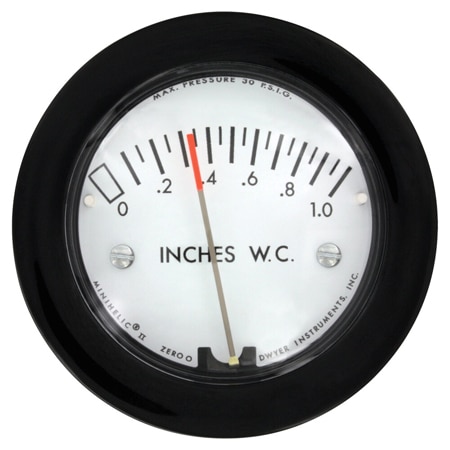

Dwyer 2-5000-0 Compact Low Differential Pressure Gauge – No Power Needed, Dependable and Low Cost (Differential, 0.05 inH₂O, Barbed Fitting, 3/16 in)

Dual: false

Weight: 170.1 g

Accuracy: ± 5 %

Dial Dia: 2 1/16 in

Materials: Glass Filled Polyamide, Polycarbonate

Compliance: RoHS 2

Accuracy Note: ± 5% of FS at 70°F (21.1°C).

Pressure Type: Differential

Pressure, Max: 0.05 inH₂O

Pressure, Min: 0 inH₂O

Compliance Note: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).

Pressure Limits: Up to 30 psi

Materials, Wetted: Consult Factory

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Mounting Orientation: Vertical Diaphragm

Process Connection Note: Barbed, for 3/16˝ ID tubing (standard); 1/8˝ male NPT (optional).

Process Connection Size: 3/16 in

Process Connection Type: Barbed Fitting

Operating Temperature, Max: 120 °F

Operating Temperature, Min: 20 °F
