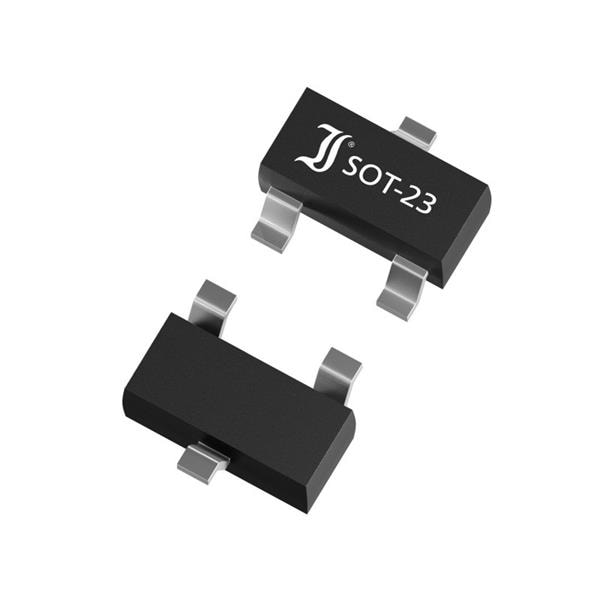

Diotec Semiconductor DI62062.5S1 LDO Voltage Regulators VR, SOT-23, 7V, 2.475V, 2.525V
생산업체: Diotec Semiconductor Model: DI62062.5S1 - 연락처
Polarity: Positive
Tolerance: 1 %
Output Type: Fixed
Unit Weight: 39 mg
Mounting Style: SMD/SMT
Output Current: 150 mA
Output Voltage: 2.5 V
Dropout Voltage: 370 mV
Line Regulation: 0.25 %/V
Load Regulation: 55 mV
Number of Outputs: 1 Output
Quiescent Current: 8 uA
Moisture Sensitive: Yes
Input Voltage - Max: 7 V
Dropout Voltage - Max: 710 mV
Pd - Power Dissipation: 250 mW
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
