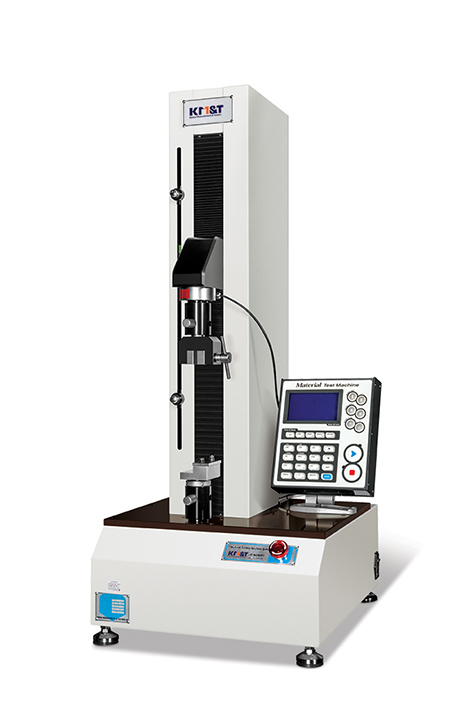

KMT KUM7000M-1S Universal testing machine (100N ~ 5kN, Digital Type)

Application: Tensile and compression tests of products such as rubber, computer, fiber, film, iron, nonferrous metal, and plastic. Power : 220V, 50/60Hz, 1 phase

Load Range : 100N ~ 5kN

Resolution : 1/100,000(24Bit), 0.01%

Test Speed : 0.01 ~ 500.00mm/min (subject to change)

Test Method : Digital Controller & PC Auto Start, End, Return system

Maximum test distance : to be decided after consulation

Extensometer to be mounted (optional)

Tensile chuck base, compression plate base (on request, air chuck separately)

Size : 500(W) × 600(D) × 1200(H)mm (can be changed)
