>> EFM 023 AKC
E-Field Meter Ranges:
Manual selected.
± 20kV/m; ± 200kV/m und ± 1MV/m
Important ! Only in ths Mode the analog interface is switched on !
Max. Value:
Distance 1cm is switched on (for MK 023)
After pressing the switch the maximum pos. and neg. Measure Values are displayed (Walking Test). By pressing the switch again the values will be reset and starts again.
No zero drift
Therefore a zero adjustment is not needed before each measurement.
Measurement ranges:
distance 1cm: 0 to 10kV
distance 2cm: 0 to 20kV
distance 5cm: 0 to 50kV
distance 10cm: 0 to 100kV
distance 20cm: 0 to 200kV
Dimensions: 122mm x 70mm x 26mm ( L x W x H )
Weight: approx. 130 g (without battery)
Power supply: 9V Alkali battery IEC 6F22
Display:
2-line alphanumeric LC-display with 12 digits each
The measurement distance in cm will be displayed in the first line, the voltage potential will be indicated in volts in the second line.

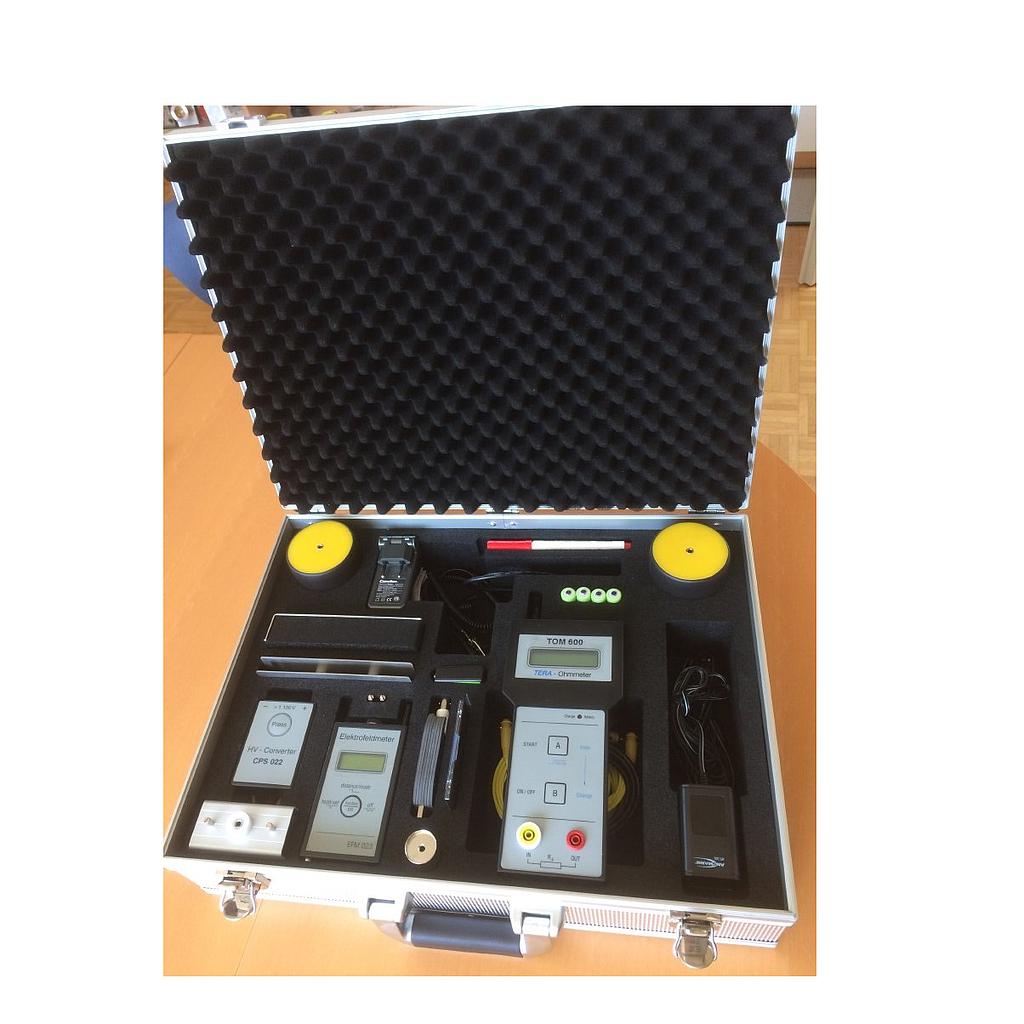

Scope of delivery: EFM 023 with Volt-Meter-Set VMS022 and UAC 110 with KL-ReadOut Software for walking test conform to EN 63410 including the CP2 022 Set all in a stabil Aluminium Case
>>TOM 600 ME
Measuring range
10 kΩ... 2 TΩ
( 104....1012Ω)
tolerance: ± 1 x 10n
Measuring voltages
< 200kΩ = 10V
> 200kΩ = 100V
Dimensions: 200mm x 100mm x 40mm (L x W x H)
Weight: approx. 380g (without batteries)
Display: Alphanumeric display (2 rows x 16 digits), indicator panel 60mm x 15mm
PC-Interface: USB - Interface with small USB Socket
Power supply: 4 pc. AA cells, 2100mAh. (permanent supervised) operating time approx. 6h with fully charged cells, external with mains adapter 9V DC / 300mA
Charging time: max. 14h
Power comsumption: max. 100mA
Auto Switch Off: approx. 5min after the measurement, when no button pressed
Scope of delivery:
TOM 600, 2 pc. measuring electrodes ME 250, Mains adapter, 4 pc. AA Mignon NiMH storage batteries, 1 pc. teflon coated measuring strip 1m with 4mm banana plugs, 1 pc. teflon coated measuring strip 5m with 4mm banana plugs, Serial PC cable, PC software on 3,5" floppy, Manual
