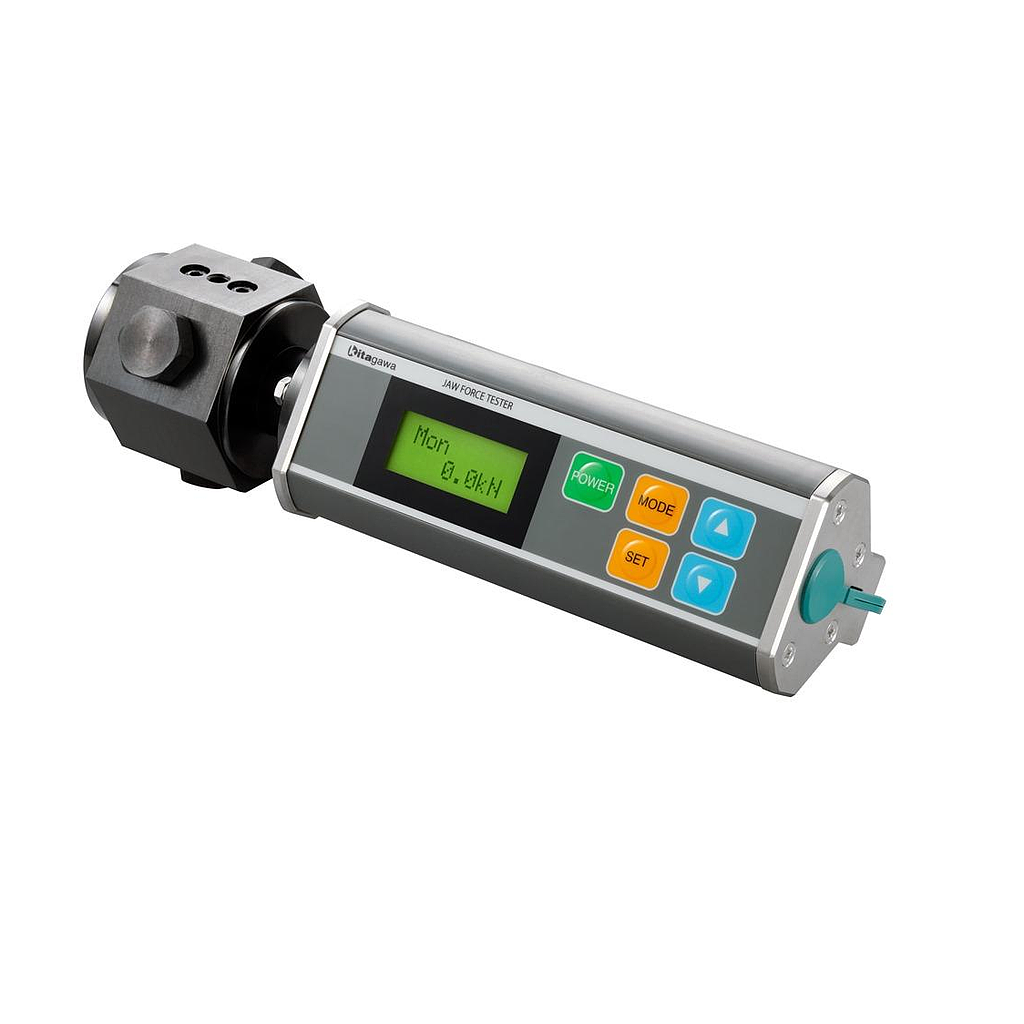

Kitagawa JFT-S100A Jaw Force Tester

Load Cell

Constant Capacity(per jaw): 100kN

Allowable load: 150%

Gripped points: Two or three positions

Accuracy: ±2 % R.O.

Measurable diameter:

φ62~φ65mm　(with Loading button AH)

φ62~φ75mm　(with Loading button BH)

Display

Measuring range: 0.5~100.0 kN

Display unit: 0.1kN

Operation Switch: Sheet Switch Pannel

Display unit: LCD Character display (8×2 line with Back light)

Others

Power source: Lithium Battery(CR123A)×2sets

external power source: Source voltage DC5V±5%

Operation Temperature: 0~50°C

Operation Humidity: 80%RH or less

Weight: 1.3 kg

Accessory

Loading button AH(H 7mm)×3pieces

Loading button BH(H 12mm)×3pieces

Battery for operation check(CR123A×2pieces)
