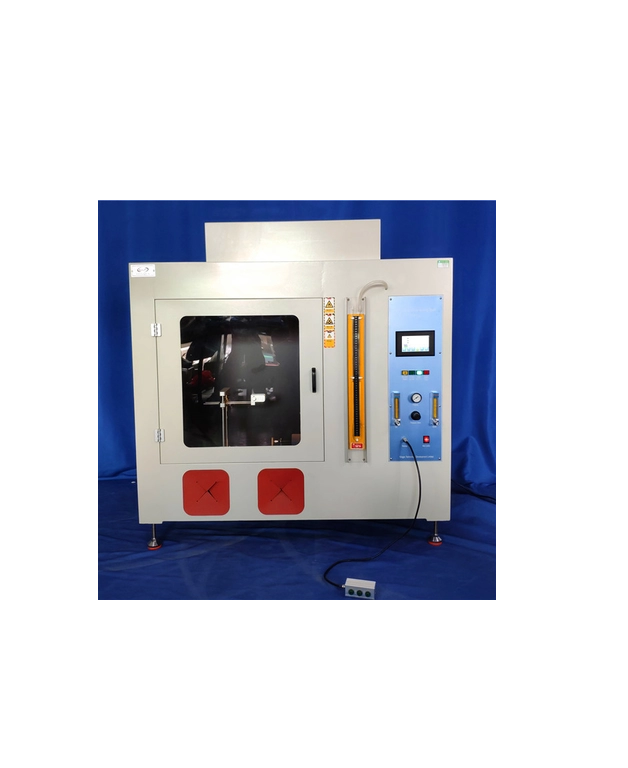

KINGPO KP-FT04 Flames Tester (0 ~ 1000℃, 50W)

Inside diameter: Φ9.5mm ± 0.3mm

Test angle: 0°, 20°, 45°

Flame height: 20mm ± 2mm ~ 180mm ± 10mm

Ignition exertion time: 0–999.9s ± 0.1s

Residual flame: 0–999.9s ± 0.1s

Residual broil: 0–999.9s ± 0.1s

Combustion gas: 98% methane gas or 98% propane gas

Flow & Pressure: Double flowmeter and pressure gauge

Temperature test range: 0 ~ 1000℃

Flame temperature requirement: From 100℃ ± 5℃ rise up to 700℃ ± 3℃ within 44 ± 2s ~ 54 ± 2s

Thermocouple: K type Φ0.5mm, accuracy ± 0.05%

Studio area: >0.75 m³

External dimension: 1200mm W × 700mm D × 1400mm H
