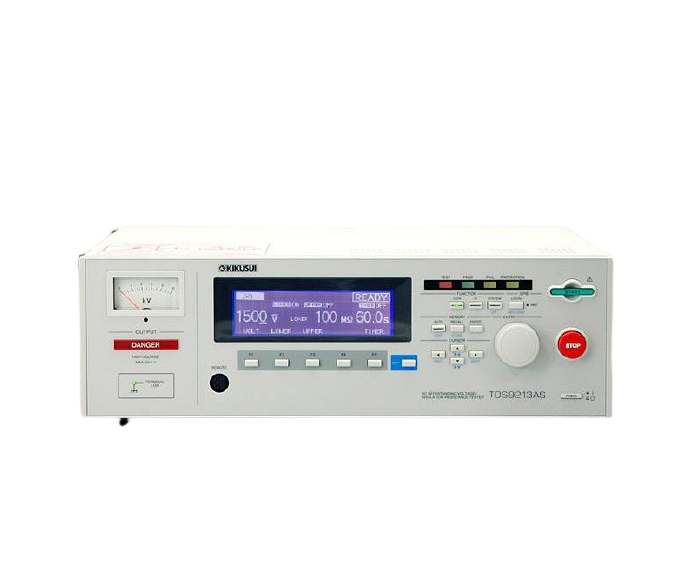

KIKUSUI TOS9213AS Hipot Tester with Insulation Resistance Test (0.05 kV ~ 10.0 kV DC)

Hipot Tester

Output-voltage range: 0.05 kV to 10.0 kV DC; 10 V; ±(1.5% of setting +20 V)

Maximum rated load: 50 W (10 kV/5 mA)

Maximum rated current: 5 mA

Measurement: V, A, Time

Insulation Resistance Tester

Output-voltage range: -25 V to -1500 V; 1 V; ±(1.5% of setting +2 V)

Maximum rated load: 1 W(-1000 V/1 mA), 0.15 W(-1500 V/0.1 mA)

Maximum rated current: 1 mA

Measurement: V, R, A, Time

Power requirements

Nominal voltage range (Allowable voltage ): 100 V to 120 V AC / 200 V to 240 V AC (85 V to 130 V AC / 170 V to 250 V AC) Selectable

Power con-sumption:

Using no load (READY): 100 VA or less

Using the rated load: Max 200 VA

Allowable frequency range: 47Hz to 63Hz

Weight: Approx. 12 kg (Approx. 26.46 lbs)

Accessory

AC Power cord 1 pc.

High-voltage test leadwire TL01-TOS (1.5 m)1 set,

Interlock jumper 1 pc.

HIGH VOLTAGE DANGER sticker 1 sheet

Fuse 1pc.

Operation Manual 1 copy
