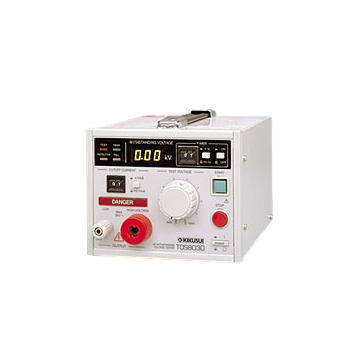

KIKUSUI TOS8030 Hipot Tester (0.05 kV ~ 3.00 kV)

Output voltage range: 0.05 kV to 3.00 kV/single range

Maximum rated load: 30 VA (3 kV/10 mA) (at a nominal input rating)

Output voltage waveform: AC line waveform

Voltage tester range: 0.00 kV to 4.00 kV, 10 V

Nominal input rating(Input voltage range): 220 V (200 V to 240 V) or 100 V (90 V to 110 V), 50 Hz or 60 Hz

Power consumption: At no-load (in READY state) 10 VA or less

Weight: Approx. 6 kg(Approx.13.23 lbs)

Standard accessories:

High-voltage test leads TL01C-TOS (approx. 1.5 m): 1 set

Power cord: 1

INTERLOCK jumper: 1

Operation Manual: 1 copy
