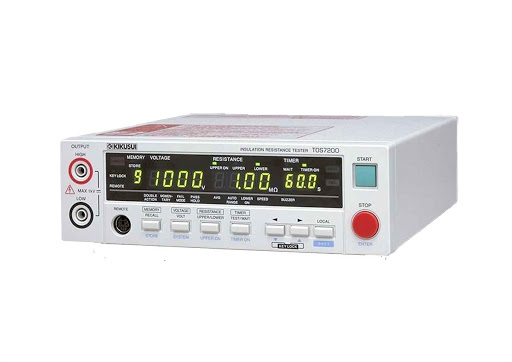

KIKUSUI TOS7200 Insulation Resistance Tester (-25 V ~ -1000 V)

Insulation Resistance Tester

Máy đo điện trở cách điện

Output voltage range: -25 V to -1000 V; 1 V; ±(1.5 % of setting + 2 V)

Maximum rated load: 1 W (1 000 V/1 mA)

Maximum rated current: 1 mA

Measurement: V, R

Interface: REMOTE, SIGNAL I/O, RS232C, ANALOG OUT

Nominal voltage range (allowable voltage range): 100 V to 240 V AC (85 V to 250 V AC)

Power consumption at rated load: 30 VA maximum

Allowable frequency range: 47 Hz to 63 Hz

Weight: Approx. 2 kg (Approx.4.41 lbs)

Accessories

AC power cable: 1 pc.

TL08-TOS high-voltage test leadwires (1.5 m): 1 set

Operation Manual: 1 copy

Datasheet

 Manual
