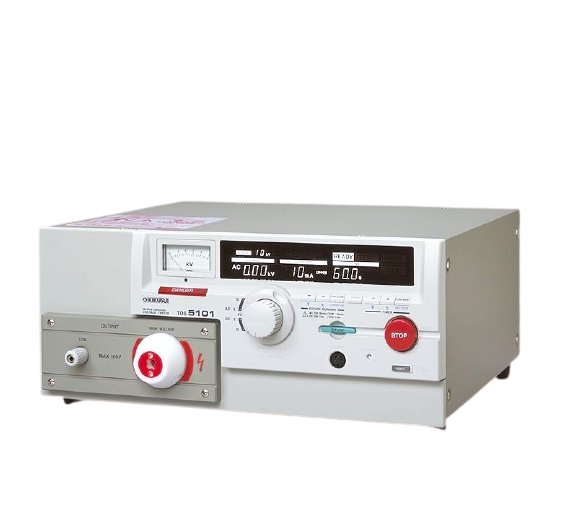

KIKUSUI TOS5101 Hipot Tester (500VA / 10 kV)

AC:

Maximum Rated: 500VA / 10 kV, 50 mA

Waveform: Commercial line waveform

Voltage Regulation: Max. 15% (for max. rated load to no load)

DC:

Applied Voltage: 50W / 10 kV, 5 mA

Ripple: 100 Vp-p typ. at 10 kV, no load/ 200 Vp-p typ. at max. rated output

Maximum Rated: Max. 3% (for max. rated load to no load)

Measurement: V, A

Accessories

High-voltage test lead TL01-TOS (max.allowablevoltage: 5 kV /1.5m); TL03-TOS (max.allowablevoltage: 10 kV /1.5m)

14-pin amphenol plug (assembled)
