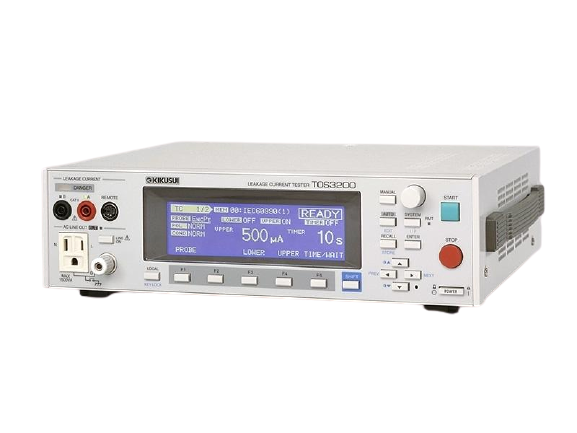

Measurement circuit network (NTWK)
Network A: Basic measurement element: (1.5 kΩ//0.22 µF) + 500 Ω
Network B/B1: Basic measurement element: (1.5 kΩ//0.22 µF) + 500 Ω//(10 kW + 0.022 µF)
Network C: Basic measurement element: (1.5 kΩ//0.22 µF) + 500 Ω//(10 kΩ + (20 kΩ + 6.2 nF)//9.1 nF)
Network D: Basic measurement element: 1 kΩ
Network E: Basic measurement element: 1 kΩ//(10 kΩ + 11.225 nF + 579 Ω)
Network F: Basic measurement element: 1.5 kΩ//0.15 µF
Network G: Basic measurement element: 2 kΩ
Interface: RS232C, USB, REMOTE, SIGNAL I/O
Current measurement range:
Range 1 DC/RMS: 30 µA to 600 µA, PEAK: 50 µA to 850 µA
Range 2 DC/RMS: 125 µA to 6.00 mA, PEAK: 175 µA to 8.50 mA
Range 3 DC/RMS: 1.25 mA to 30.0 mA, PEAK: 1.75 mA to 90.0 mA
Power:
Input power:
- Nominal input rating:100Vac to 240Vac, 50/60Hz, power consumption: 70 VA max.
- for EUT Nominal input rating:100Vac to 240Vac, 50/60Hz
Rated output capacity: 1500 VA, maximum current: 15 A, rush current: 70 A peak max. (within 20 ms)
Accessories
1 set of test leads (TL21-TOS: red and black, one each, with alligator clips)
1 flat probe (FP01-TOS), 1 spare fuse (15 A, for EUT power)
1 instruction manual, 1 circuit principle diagram sticker
2 power cords (for the tester and for the EUT AC line)
