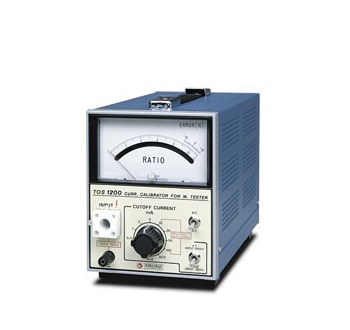

KIKUSUI TOS1200 Hipot Tester Current Calibrator (0.5/1/2/5/10/20/50/100 mA)

Measuring Ranges: 8 ranges consisting of 0.5/1/2/5/10/20/50/100 mA along with values equal to 0.8 times the values of those ranges (for 1, 2, 4 and 8 steps)

Allowed Input Time:

0.5/1/2/5 mA ranges: Continuous

10/20/50/100 mA ranges: 60 sec.

Max. 1/3 of duty cycle

Dimensions (MAX): 134[5.27 inch]W × 164[6.46 inch]H × 270[10.63 inch]D mm (140[5.51 inch]W × 189[7.44 inch]H × 320[12.60 inch]D mm)

Weight: approx. 3.5 kg (approx. 7.72 lbs)

Accessories: TL04-TOS high-voltage test lead: 1

Datasheet
