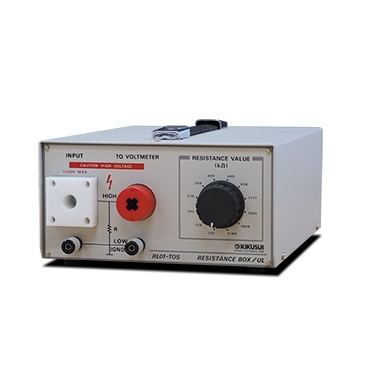

KIKUSUI RL01-TOS UL Resistance Load

Resistors: 120, 159, 210, 279, 369, 489, 648, 858, 1,137, 1,500, 1,989 and 2,148 kΩ

Resistance Accuracy: +1 %, -0 % of nominal value when set to 120 kΩ, ±1 % of nominal value when set to other values

Maximum Operating Voltage: 1300 V (continuous rating)

Maximum Overload Voltage: 1400 V for 5 seconds (application may not be repeated within 1 minute)

Dimensions (MAX) 200[7.87 inch]W × 100[3.94 inch]H × 260[10.24 inch]D mm (210[8.27 inch]W × 120[4.72 inch]H × 295[11.61 inch]D mm)

Weight: approx. 2.6 kg(approx. 5.73 lbs)

Accessories:

TL04-TOS high-voltage test lead: 2

TL05-TOS high-voltage test lead: 1
