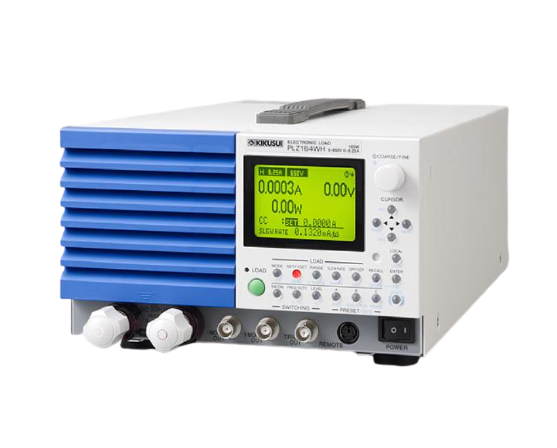

Operating voltage (DC): 5 V to 650 V
Current: 8.25 A
Power: 165 W
- CC mode
Setting range:
Range H: 0 A to 8.6625 A
Range M: 0 A to 866.25 A
Range L: 0 A to 86.625 A
Setting accuracy:
L range, M range: ±(0.2 % of set + 0.1 % of f.s )
L range, 300pA or more: ±(0.2 % of set + 0.1 % of f.s)
L range, less than 300pA: ±(0.2 % of set + 0.1 % of f.s) + Vin/ 2.21 MΩ
Parallel Operation: ±(0.2 % of set + 1.1 % of f.s)
Ripple: rms: 2 mA/ p-p: 20mA
- CR mode
Setting range
H: 1.7325 S to 0 S
M: 173.25 S to 0 S
L: 17.325 S to 0 µS
Setting accuracy:
H, M range: ±(0.5 % of set + 0.5 % of f.s)
L range: ±(0.5 % of set + 0.5 % of f.s) + Vin/ 2.21 MΩ
Parallel operation: (1.2% of the set + 1.1% of the f.s)
- CV mode
Setting range:
H: 0 V to 682.5 V
L: 0 V to 68.25 V
Setting accuracy: ±(0.2 % of set + 0.2 % of f.s)
- CP mode
Setting range:
Range H: 0 W to 173.25 W
Range M: 0 W to 17.325 W
Range L: 0 W to 1.7325 W
Setting accuracy:
H range, M range; ±(2.5 % of f.s )
L range, 0.25 W or more: ±(3 % of f.s)
L range, Less than 0.25 W: ±(3 % of f.s + Vin/ 2.21 MΩ)
Parallel Operation (TYP): ±(5 % of f.s + Vin/2.21 MΩ) at 23 ˚C ±5 ˚C
Measurement function: V, A, P
Other functions: Sequence, Remote sensing, Protection function (OVP, OCP, OPP, UVP)
Communication: GPIB, RS232C, USB
Accessories:
Power cord × 1 pc. (with plug, Length: approx. 2.4 m),
Load input terminal cover × 1 piece (2 lock plates provided),
Set of screws for the load input terminal × 2 sets (bolts, nuts, and spring washers),
Setup guide × 1 piece(Japanese, English),
Quick Reference(Japanese:1 piece, English:1 piece), CD-ROM × 1 piece
