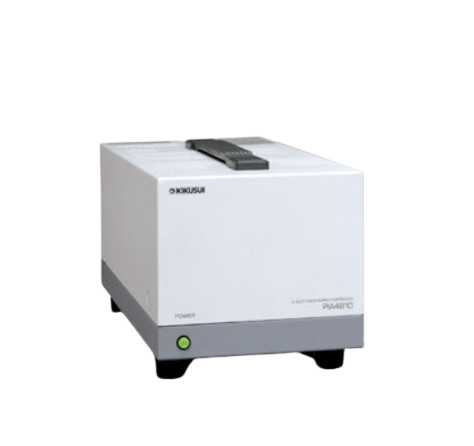

KIKUSUI PIA4820 Power Supply Controller Supporting Multiple Channels (50 VA)

- Input

Line voltage range: The following ranges can be selected using the voltage switch on the bottom of the unit. 90 VAC ~ 110 VAC / 106 VAC ~ 125 VAC / 180 VAC ~ 220 VAC / 211 VAC ~ 250 VAC

Frequency: 48 Hz ~ 62 Hz

Power consumption: Up to 50 VA

Operating ambient temperature/Humid range: 0~40 ˚C, 10%~90% rh (no dew condension)

Storage ambient temperature/Humid range: -20~70 ˚C, 10%~90% rh (no dew condension)

- Insulation resistance:

Input - chassis: 500 VDC, 30 MΩ or more

TP-BUS - chassis: 1000 VDC, 30 MΩ or more

CH terminals - chassis: 500 VDC, 30 MΩ or more

- Withstand voltage:

Input - chassis: 1500 VAC, 1 minute

Input - TP-BUS: 1500 VAC, 1 minute

TP-BUS - chassis: 600 VAC, 1 minute

CH terminals - chassis: 600 VAC, 1 minute

Input - CH terminals: 1500 VAC, 1 minute

Weight: Approx. 5 kg (11 lb)

Dimensions: 141.9W X 123.4 H X 350 (365) D mm

Accessories:

- AC power cable: 1

- TP-BUS connector: 1

- TP-BUS core: 1

- Operation Manual for controller: 1
