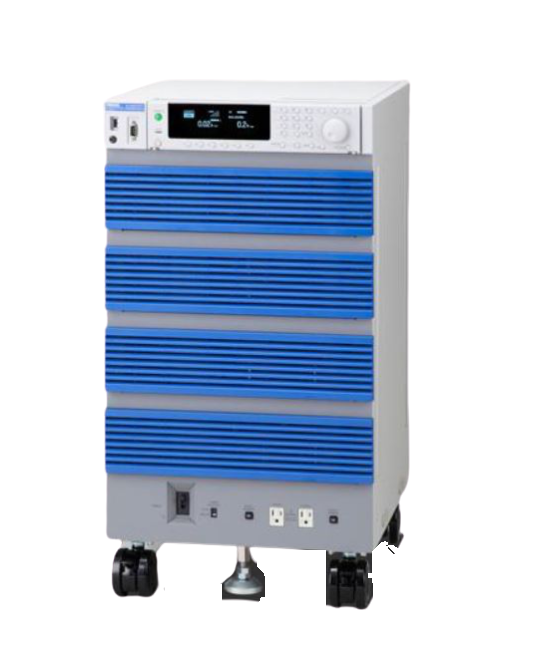

KIKUSUI PCR3000LE Multifunctional AC Power Supply (3 kVA)

- Input:

Voltage: 85 V to 132 V /170 V to 250 V (1 phase, 2-wire)

Frequency: 47Hz to 63Hz

Max current: 66 A, 32 A

- AC mode output ratings (AC rms)

Voltage: 1 V to 150 V / 2 V to 300 V

Voltage setting range: 0 V to 152.5 V / 0 V to 305.0 V

Voltage setting accuracy: ± (0.3 % of set + 0.6 V)

Max. current: 30 A, 15 A

Power capacity: 3 kVA

Frequency: 1 Hz to 999.9 Hz

DC mode output ratings:

Voltage: ±1.4 V to ±212 V / ±2.8 V to ±424 V

Voltage setting range: -215.0 V to +215.5 V / -431.0 V to +431.0 V

Voltage setting accuracy: ±(0.05 % of set + 0.05/0.1 V)

Max. current: 21 A, 10.5 A

Power capacity: 2.1 kW

- Output Voltage Stability:

Line regulation: Within ±0.1 %

Load regulation: Within ±0.1 V, within ±0.2 V

Ripple noise: ≤ 0.2 Vrms

- Interfaces: RS232C, USB (Option) , LAN (Option) , GPIB (Option)

- Measurement: A, V, W

- Protection Functions: Output overvoltage protection AC/AC+DC/ DC mode, Output undervoltage protection AC/AC+DC/ DC mode, Frequency Upper/Lower limit,...

- Accessories: Power cord, Setup guide, Quick Reference, Safety information, CD-ROM

(User's manual)
