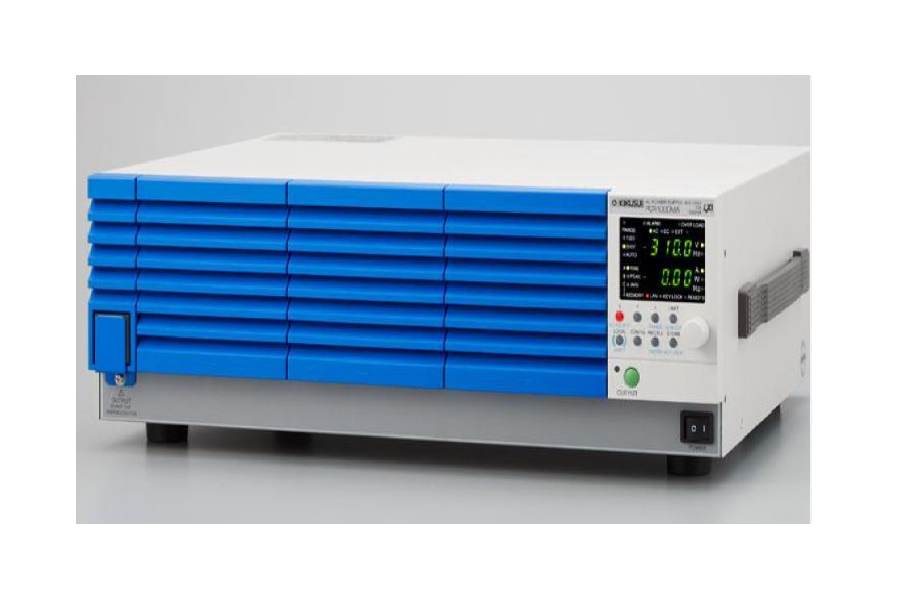

KIKUSUI PCR1000MA Compact AC Power Supply (1 kVA)

- Input:

Nominal input voltage: 100 Vac to 120 Vac/200 Vac to 240 Vac, 50 Hz/60 Hz, single phase

Frequency: 47Hz to 63Hz

- AC mode output ratings (AC rms)

Voltage: 0 V to 155 V/0 V to 310 V

Voltage setting range: 0 V to 157.5 V/0 V to 315.0 V

Voltage setting accuracy: ±(1 % of set + 0.6 V/1.2 V)

Max. current: 10 A/5 A

Power capacity: 1 kVA

Frequency setting range: 40.0 Hz to 500.0 Hz

DC mode output ratings:

Voltage: -219 V to +219 V/-438 V to +438 V

Voltage setting range: -222.5 V to +222.5V/-445.0 V to +445.0 V

Voltage setting accuracy: ±(1 % of set + 0.6 V/1.2 V)

Max. current: 8 A/4 A

Power capacity: 800 W

- Output Voltage Stability:

Line regulation: ≤ ±0.15 %

Load regulation: 40 Hz to 100 Hz, DC : ≤ ±0.15V/±0.3V

Other than above : ≤ ±0.5 V/±1 V

Ripple noise: 0.8 Vrms/1.6 Vrms

- Interfaces: USB , LAN , GPIB (Option)

- Measurement: A, V, W

- Accessories: Power cord, Core, Cable tie, Quick Reference, Safety information, CD-ROM
