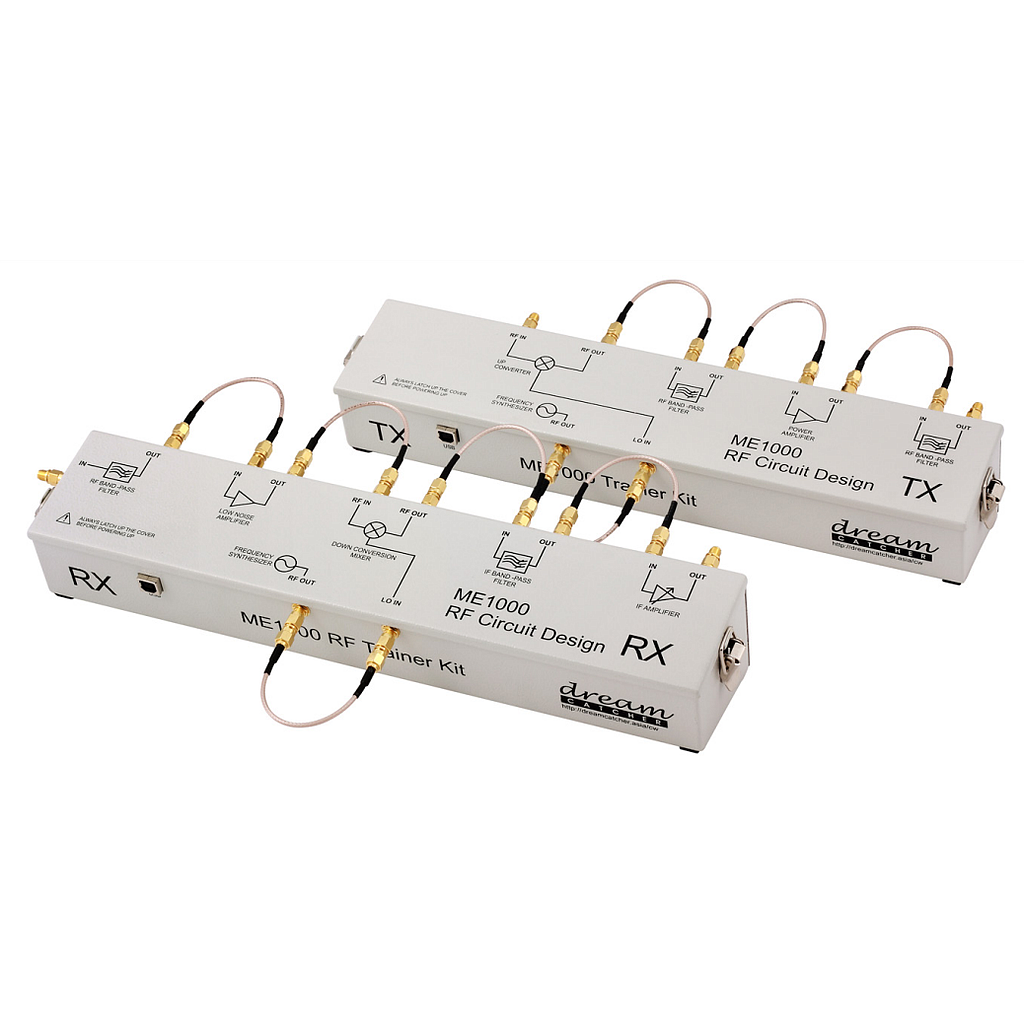

RF transceiver hardware specifications
RF transmitter unit
- RF Frequency synthesizer output power: −4.5 dBm (typical)
- RF Frequency synthesizer frequency range: 816 to 880 MHz
- RF Antenna frequency range: 806 to 960 MHz
- RF Antenna length: 210mm
RF receiver unit
- RF Frequency synthesizer frequency range: 816 to 880 MHz
- RF Antenna frequency range: 806 to 960 MHz
- RF Antenna length: 210mm
- General: Power source: USB; EMC design: Class B, Part 15 of FCC
Lab sheets
– Spectrum analysis - Understanding spectrum analyzer settings
– Spectrum analysis of frequency synthesizer and mixer – Harmonics, intermodulation, isolation
– Vector network analysis – Understanding S-parameter measurements
– Vector network analysis – Calibration and shifting of reference planes through port extension
– Analyzing filter and amplifier using spectrum analyzer – Frequency response, gain compression, harmonics
– Measurement and troubleshooting of RF transceiver
– Vector network analysis of RF filter – Transmission, reflection, impedance on Smith chart
– Vector network analysis of amplifier – Gain, isolation, gain compression, AM-PM conversion
Accessories
The following accessories are provided with the training kit
- TRM standard calibration kit: 1
- USB cable: 3
- SMA(m)-to-SMA(m) jumper cable, 0.18 m: 9
- SMA(m)-to-SMA(m) coaxial cable, 1 m: 2
- N(m)-to-SMA(f) adapter : 2
- RF power combiner: 1
- Antenna: 2
- Ground cable, 1 m: 2
