Direct access to our certified experts
Standard option – 10 MHz to 50 GHz
Analog-to-digital converter (ADC) sampling rate: 192 kHz
ADC resolution: 24 bits
Integration time: 1.024 ms
Other
Current requirement 400 mA (approximately)
2.4 mm (m), 50 Ω
Cable: USB 2.0 Type A to 5-pin Mini-B
Interface: USB 2.0 interface, USB-TMC compliant
Programmability: SCPI, Keysight VEE, LabVIEW, Microsoft Visual Basic
Calibration: 1 year
Temperature
Operating condition: 0 °C to 55 °C
Storage condition: –40 °C to 71 °C
Humidity Maximum
Operating condition: 95% RH at 40 °C (non-condensing)
Storage condition: Up to 90% RH at 65 °C (non-condensing)

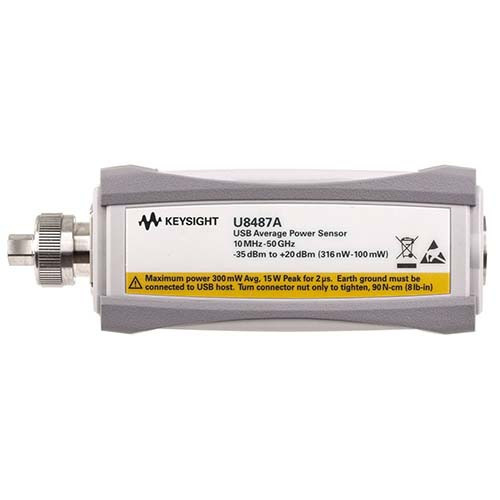

Dimension(Length × Width × Height): U8487A: 127.70 mm x 46 mm x 35.90 mm
Net weight: 0.22 kg
Standard shipped items
- Power sensor cable 5 ft (1.5 m), default cable length
- Trigger cable, BNC male to SMB female, 50 Ω, 1.5 m
- Certificate of calibration
- U8485A: 3.5 mm (f) to N-Type (m) adapter
- U8487A/88A: 2.4 mm (f) to N-Type (m) adapter
