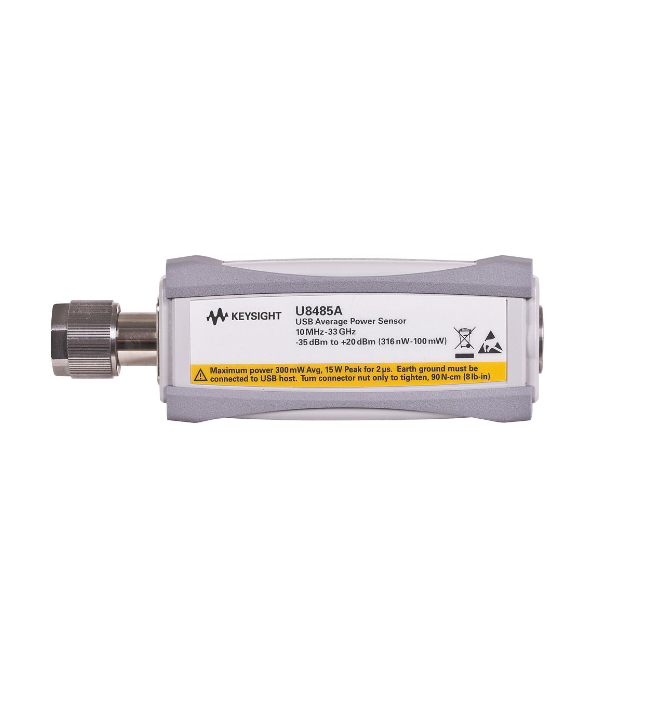

KEYSIGHT U8485A Thermocouple Power Sensors (DC/10 MHz – 33 GHz USB, 3.5mm)

Analog-to-digital converter (ADC) sampling rate: 192 kHz

ADC resolution: 24 bits

Integration time: 1.024 ms

Other

Current requirement 400 mA (approximately)

3.5 mm (m), 50 Ω

Cable: USB 2.0 Type A to 5-pin Mini-B

Interface: USB 2.0 interface, USB-TMC compliant

Programmability: SCPI, Keysight VEE, LabVIEW, Microsoft Visual Basic

Temperature

Operating condition: 0 °C to 55 °C

Storage condition: –40 °C to 71 °C

Humidity Maximum

Operating condition: 95% RH at 40 °C (non-condensing)

Storage condition: Up to 90% RH at 65 °C (non-condensing)

Dimension(Length × Width × Height): U8485A: 136.50 mm × 46 mm × 35.90 mm

Net weight: 0.25 kg
