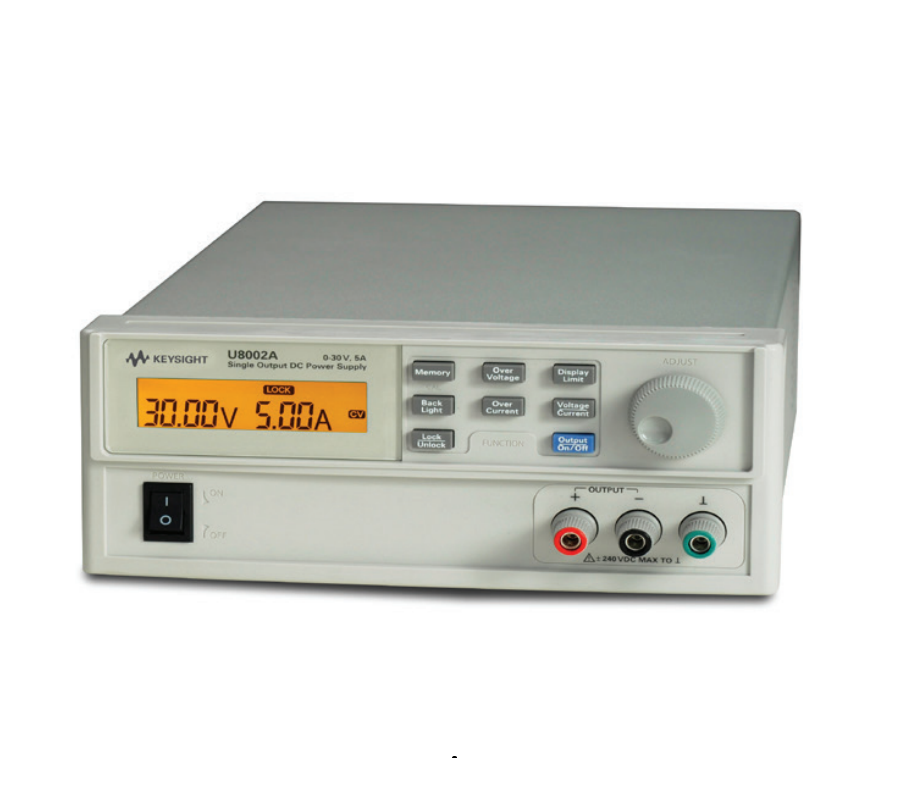

KEYSIGHT U8002A Single Output DC Power Supply (+30V/5A)

• Output ratings (0°C to 40°C): 0 to +30 V/0 to 5 A

• Line and Load Regulation CV: <0.01% +2 mV; CC: <0.02% +2 mA

• Ripple and Noise (25 °C ±5 °C) CV: 12 mVp-p, <1 mVrms; CC: 3 mArms

• Programming Accuracy (25°C±5°C): <0.35% +20 mV; <0.35% +20 mA

• Readback Accuracy (25°C±5°C): <0.35% +20 mV; <0.35% +20 mA

• Over Voltage Protection Accuracy ± (% of output + offset): <0.5% +0.5 V

• Over Voltage Protection Programmable Range: 1 V to 33 V

• Over Current Protection Accuracy ± (% of output + offset): <0.5% +0.5 A

• Over Current Protection Programmable Range: 1 A to 5.5 A

• Display: Liquid Crystal Display (LCD)

• Maximum Input Power: 500 VA

• Dimensions (H x W x L): 88.1 mm x 212.3 mm x 394.3 mm

• Weight: 8.3 kg

Datasheet
