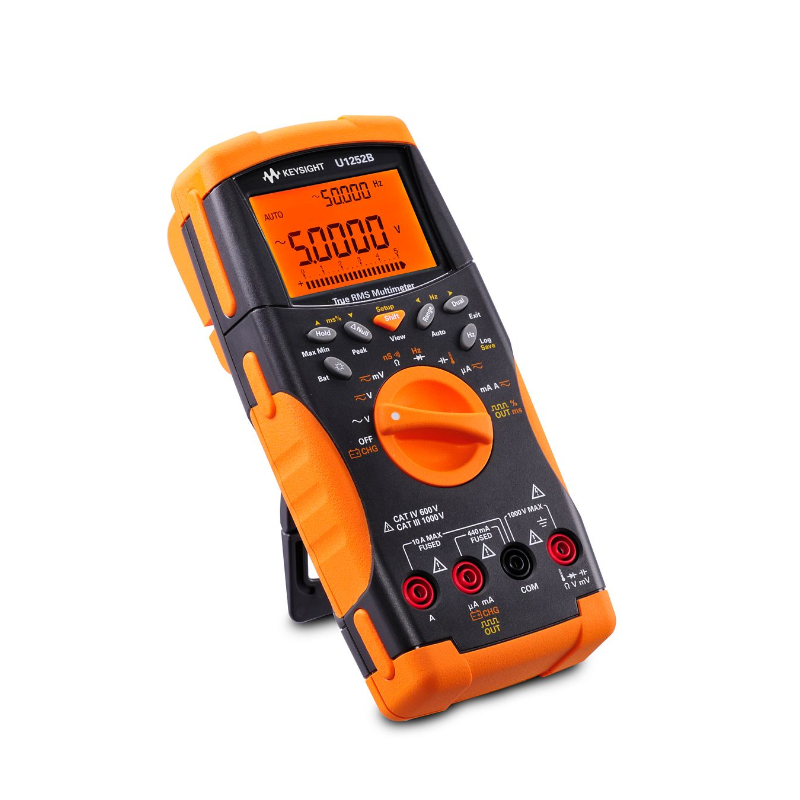

KEYSIGHT U1252B Handheld Digital Multimeter (0.025%; out PWM 4.8kHz; charger; AC+DC)

- True RMS:

- Bandwidth: 100khz

- Voltage AC+DC: yes

- Current AC+DC: yes

- Voltage DC:

50.000 mV /0.05%

500.00 mV, 1000.0 mV, 5.0000 V, 50.000 V /0.025%

500.00 V, 1000.0 V /0.03%

- Voltage AC (true RMS):

50.000 mV, 500.00 mV, 1000.0 mV,

5.0000 V, 50.000 V, 500.00 V /0.4%

- Resistance:

500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 50.000 kΩ,/0.05%

5.0000 MΩ /0.1%

50.000 MΩ, 500.00 nS /1%

- Diode: Yes

- Current DC:

500.00 µA, 5000.0 µA /0.05%

50.000 mA, 440.00 mA /0.15%

5.0000 A, 10.000 A /0.3%

- Current AC (True RMS):

500.00 µA, 5000.0 µA, 50.000 mA,

440.00 mA, 5.0000 A, 10.000 A /0.7%

- Capacitance: 0.01nF-100.00mF /1%

- Temperature type J,K: K: –200 ~ 1372 ºC, J: –210 ~ 1200 ºC (option)

- Frequency: 1MHz /0.02%

- Dataloging: 100 manual, 200 interval point

- 4-20mA %scale

- Output PWM: 0.5-4.8khz, 0.39% ~ 99.60% /0.005%

- PC connectivity: IR-USB (option)

- Connectivity: IR-to-Bluetooth (option)

Power supply: Ni-MH Rechargeable battery

Dimensions: 203.5 mm x 94.4 mm x 59.0 mm

Included Accessories:Test Lead Set; Quick Start Guide; Rechargeable Ni-MH battery; Power cord and adapter; Certificate of Calibration

Datasheet

Brochures

Optional Accessories

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1171A: Magnetic hanging kit

U1170A: AC power adapter with power cord - offer to all countries

U1174A: Carrying case, soft

U1172A: Transit case for handheld DMM, aluminum-clad

U1186A: Thermocouple (K-type, 1m) and adapter

U1185A: Thermocouple (J-type) and adaptor

U1184A: Adaptor, temperature probe

U1163A: Grabbers, SMT

U1164A: Test probes, fine tip

U1181A: Immersion probe type K

U1182A: Surface probe, industrial

U1183A: Probe, air

U1162A: Alligator clip

U1180A: T/C adapter + lead kit, J and K type

U1161A: Test lead kit, extended

U1583B: AC current clamp

U1187A: Thermocouple (K-type, 3.5m) and adapter

U1176A: LED flash light

U1177A: Infrared (IR)-to-Bluetooth class 2 (10meter) adapter

U1168B: Test lead kit

U1117A: Infrared (IR)-to-Bluetooth class 1 (100meter) adapter with Mfi

U1115A: Bluetooth class 1 (100meter) remote logging display

U1118A: Remote connectivity kit (100meter) with U1115A and U1117A

U1173B: IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V
