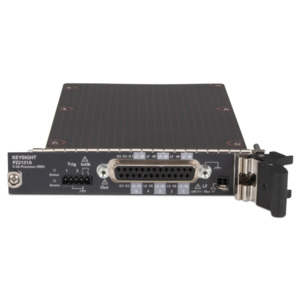

KEYSIGHT PZ2131A Precision Source/Measure Unit Module (5CH, 500 kSa/s, 10 pA, 30 V, 500 mA DC/pulse)

Number of Channels: 5

Number of Slots: 1

Output Range:

Maximum Voltage: 30V

Maximum Current (DC): 500mA

Maximum Current (Pulse): 500mA

Resolution:

Minimum Voltage: 6uV

Minimum Current: 10pA

RMS Current Measurement Noise (1 PLC): 35pArms

Voltage Source Noise:

Peak-to-peak (0.1 - 10 Hz): < 20μV

Peak-to-peak (20 MHz): < 12mV

RMS (20 MHz): < 1mVrms (< 25μVrms with PX0107A)

RMS (200 MHz): < 3.3mVrms

Minimum Pulse Width: 100μs

Maximum Voltage Ramp Rate: 0.15V/μs

Digital Mode: Available

Maximum Sampling Rate: 500 kSa/s

Automatic Range: Available

Automatic Continuous Current Range: Available

Remote Connection (4-Wire Connection): Available

Low-Current Measurement Protection Port: Available

Operating Modes:

Standard Mode: Available

PS Mode: Available

High Capacitance Mode: Not available

Laser Mode: Not available

Environmental Specifications:

Temperature: 0°C ± 50°C

Humidity: 10% to 80%

Warm-up Time: 40 minutes

Self-Calibration: Performed within 24 hours

Temperature Change During Self-Calibration: Less than ±5°C

Calibration period: One year

Aperture Time: 1 PLC

Terminal Connection: Kelvin Connection.
