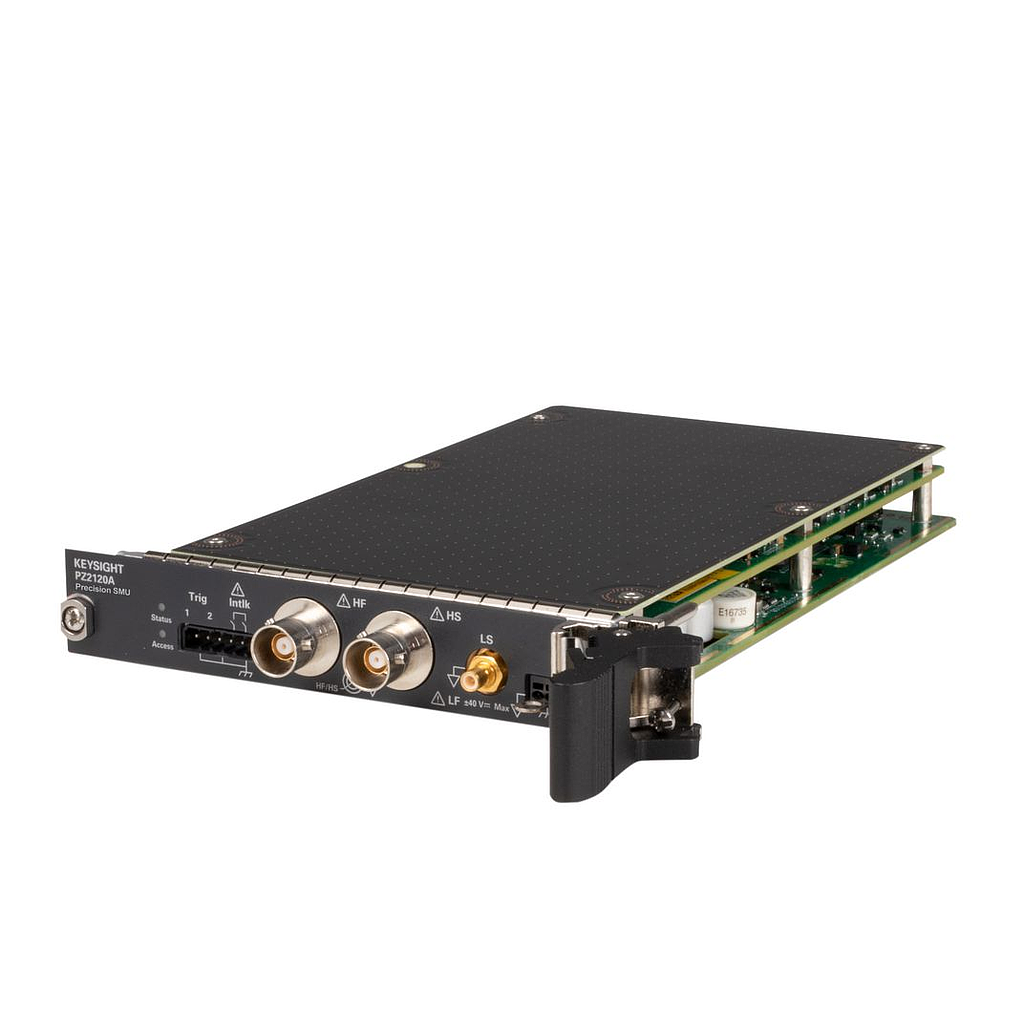

KEYSIGHT PZ2120A Precision Source/Measure Unit Module (1CH, 1 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse)

Number of channels: 1

Number of slots: 1

Output range

Max. voltage: 60V

Max. current (DC): 3.5 A

Max. current (Pulse): 10.5A

Resolution Min. voltage: 6 uV

Min. current: 100 fA

Current measurement noise RMS (1 PLC): 400 fArms

Voltage source noise

Peak-to-peak (0.1 - 10 Hz): < 12μV

Peak-to-peak (20 MHz): < 30 mV

RMS (20 MHz): < 2.5 mVrms

RMS (200 MHz): < 4.5 mVrms

Min. pulse width: 50 μs

Max. slew rate: 3.5 V/μs

Digitizer mode: Yes

Max. sampling rate: 1 MSa/s

Auto measurement ranging: Yes

Seamless current measurement ranging: Yes

Remote sense (4-wire connection): Yes

Guard shield port for low current measurement: Yes

Operation mode

Standard mode: Yes

PS mode: Yes

High capacitance mode: Yes

Laser diode mode: Yes

Temperature: 0°C ± 50°C

Humidity: 10% to 80%

Warm-up time: 40 minutes

Self-calibration: Performed within the last 24 hours.

Ambient temperature changes less than ± 5 °C after self-calibration execution.

Calibration period: One year

Aperture time: 1 PLC

Terminal connection: Kelvin connection
