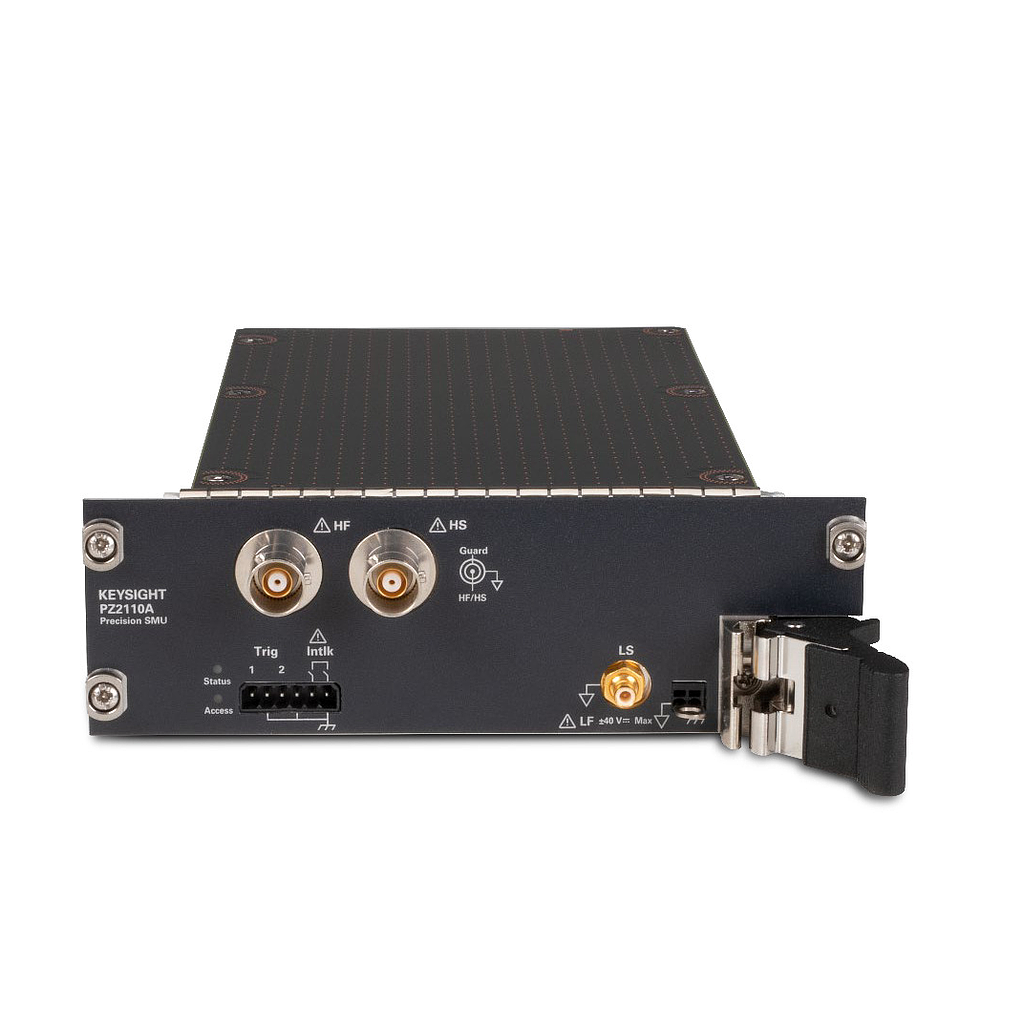

KEYSIGHT PZ2110A Precision Source/Measure Unit Module (1CH,1.25 MSa/s, 10 fA, 210 V, 315 mA)

Number of channels: 1

Number of slots: 2

Output range

Max. voltage: 210V

Max. current (DC): 315 mA

Max. current (Pulse): 315 mA

Resolution Min. voltage: 500 nV

Min. current: 10 fA

Current measurement noise RMS (1 PLC): 30 fArms

Voltage source noise

Peak-to-peak (0.1 - 10 Hz): < 4μV

Peak-to-peak (20 MHz): < 25 mV

RMS (20 MHz): < 3 mVrms

RMS (200 MHz): < 5 mVrms

Min. pulse width: 20 μs

Max. slew rate: 1.4 V/μs

Digitizer mode: Yes

Max. sampling rate: 1.25 MSa/s

Auto measurement ranging: Yes

Seamless current measurement ranging: No

Remote sense (4-wire connection): Yes

Guard shield port for low current measurement: Yes

Operation mode

Standard mode: Yes

PS mode: Yes

High capacitance mode: No

Laser diode mode: No

Temperature: 23°C ± 5°C

Humidity: 20% to 60%

Warm-up time: 40 minutes

Self-calibration: Performed within the last 24 hours.

Ambient temperature changes less than ± 5 °C after self-calibration execution.

Calibration period: One year

Aperture time

1 PLC (100 nA to 300 mA ranges, voltage ranges)

10 PLC (1 nA and 10 nA ranges)

Terminal connection: Kelvin connection

Datasheet
