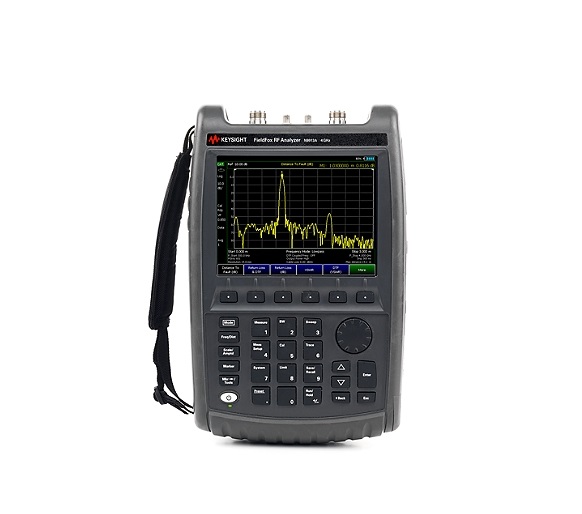

• Cable and Antenna Analyzer (CAT) - standard; Spectrum Analyzer - option; Vector Network Analyzer (VNA) - option
• Ports: 2
• Test port connectors: Type-N (f)
• Cable and antenna analyzer (CAT) and vector network analyzer (VNA)
Frequency: 30 kHz to 4 GHz
Frequency reference: -10 to 55°C
Aging Rate: ± 1 ppm/yr for 20 years (spec), will not exceed ± 3.5 ppm
Frequency resolution: 1 Hz
• Spectrum analyzer:
Frequency: 100 kHz to 4 GHz
Frequency span: Resolution: 1 Hz
Phase noise: Stability, SSB phase noise at 1 GHz
Resolution bandwidth (RBW), range (-3 dB bandwidth):
Zero span: 10 Hz to 5 MHz: 1, 3, 10 sequence
Non-zero span: 1 Hz to 5 MHz: 1, 1.5, 2, 3, 5, 7.5, 10 sequence
Video bandwidth (VBW): 1 Hz to 5 MHz in 1, 1.5, 2, 3, 5, 7.5, 10 sequence
Displayed average noise level (DANL): RMS detection, log averaging, reference level of -20 dBm, normalized to 1 Hz RBW
Third order intermodulation distortion (TOI): Two -20 dBm signals, 100 kHz spacing at input mixer, – 10 to 55°C
• Real-time spectrum analyzer (RTSA):
Maximum real-time bandwidth: 10 MHz
Resolution bandwidth: 1 Hz to 500 kHz
• Analysis bandwidth: Maximum bandwidth 10 MHz
• Dimension H x W x D: 292 x 188 x 72 mm (11.5" x 7.4" x 2.8")
• Battery: Lithium ion, 10.8 V, 4.6 A-h, 3.5 hours (typical)
• Weight: 3.0 kg or 6.6 lb. including battery
• What's Included:
AC/DC adapter
Localized power cord
Battery –rechargeable Li Ion
LAN cable
Soft carrying case with backpack and shoulder strap
Quick Reference Guide
