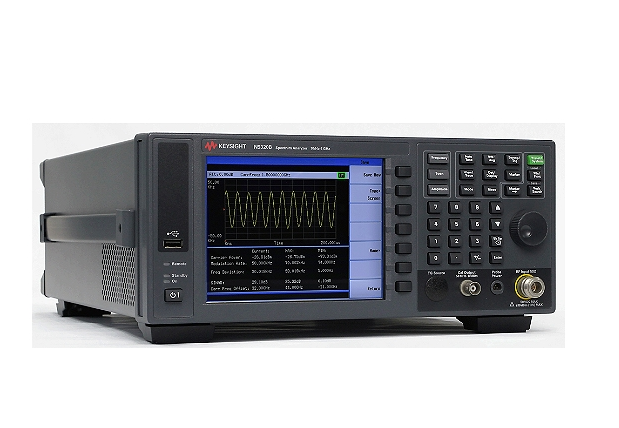

KEYSIGHT N9320B RF Spectrum Analyzer (9 kHz~3 GHz)

Range:

9 kHz to 3 GHz- AC coupled

100 kHz to 3 GHz - Preamp on

Inputs and Outputs

RF input connector: N-type female, 50 Ω

VSWR: < 1.5:1 300 kHz to 3 GHz, input attenuator ≥ 10 dB

10 MHz reference output: Output amplitude > 0 dBm

Connector and impedance: BNC-type female, 50 Ω

10 MHz reference input Input amplitude —5 to +10 dBm

Frequency lock range ± 5 ppm of specified external reference input frequency

Connector and impedance: BNC-type female, 50 Ω

Included:

Quick start guide

Documentation CD

BNC cable

N-BNC adapter

USB cable

Power cord

Datasheet
