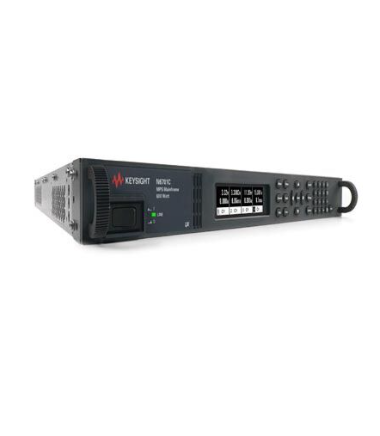

KEYSIGHT N6712C + option (N6756A-ATO /N6754A-ATO /N6754A-ATO /N6752A-ATO) Modular Power System (1200W, GPIB, LAN, USB, LXI)

Modular design, max. 4 DC power supply modules possible

Maximum output power 400W for all outputs common

Over 30 DC power modules up to max. 150V / 50A available

4 outputs with fine sense (sense) for the test voltage supply

Parallel / serial switching of outputs possible

Readback of current and voltage (integrated in power supply modules)

Memory for device settings

Synchronization to other measuring devices via trigger inputs and outputs

Protection functions can be set for all outputs (overvoltage, overcurrent and overtemperature protection)

Off / On Switch for outputs (optional for the individual DC power modules)

Temperature controlled fan

Interfaces: USB 2.0, GPIB interface, LAN interface

LXI Class C compatible

Built-in web server for remote control

Dimensions: B432.5 x D 549.7 x H44.45 mm (19 inches - 1HE)

Weight with 4 DC power supply modules: 12.73 kg
