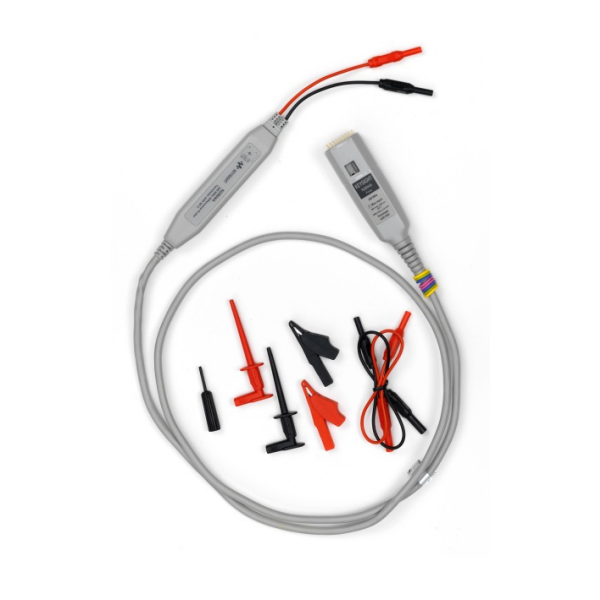

KEYSIGHT N2804A High-Voltage Differential Probe (300 MHz, ± 1000V)
ManufacturerKEYSIGHT(View more products from this manufacturer)
ModelN2804A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth:
300 MHz (without extension leads)
120 MHz (with extension leads)
Attenuation: 100:1
Input R//C (each side to ground): 2 MΩ//3 pF
Input R//C (between inputs): 4 MΩ//1.5 pF
Max differential operating voltage: ± 300 V (DC+ peak AC) and ± 200 Vrms
Max common mode operating voltage:
± 300 V (DC+ peak AC) and ± 200 Vrms CATII
± 1000 V (DC+ peak AC) and ± 1000 Vrms (Main Isolated)
Max non-destructive voltage (each side to ground):
± 300 V (DC+ peak AC) and ± 200 Vrms CATII
± 1000 V (DC+ peak AC) and ± 1000 Vrm (Main Isolated)
